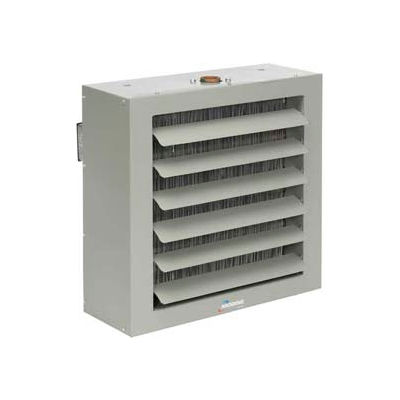

Modine 165000 BTU Steam or Hot Water Unit Heater With Explosion Proof Motor

The Modine HSB165 Horizontal Hydronic Unit Heater Features:

  • Horizontal airflow
  • Top and bottom steel female pipe connections. This permits the unit to be rotated 360° without piping changes
  • Copper tubes
  • Aluminum fins
  • Adjustable louvers
  • Balanced fan
  • Fan guard
  • Motor and electrical junction box
  • Units have a 2-piece casing for easy coil access
  • HSB models have tapped holes for suspension by threaded rod or optional pipe hanger adapter kit
  • Serpentine copper tube coil design has high resistance to thermal shock, even under high steam pressures
  • Absence of coil headers eliminates potential leaks and increases coil face area without increasing the size of unit
  • Coil designed for greater water carrying capacity with lower friction loss
  • CSA certified.
  • MADE IN U.S.A. 1 Year Limited warranty.

Click below to view the following:

Product Specifications

  • BRANDModine
  • LENGTH INCHES30-1/2
  • WIDTH INCHES23-1/4
  • HEIGHT INCHES30-1/2
  • CONNECTION SIZE INCHES1-1/4
  • FAN DIAMETER INCHES22
  • MAXIMUM MOUNTING HEIGHT FEET19
  • WEIGHT LBS92
  • COLORGray
  • CONSTRUCTIONSteel
  • INPUT (BTU/H) 2 LB STEAM 60°F ENTERING AIR165000
  • OUTPUT (BTU) HOT WATER 200°F IN 60°F ENTERING AIR130900
  • ENTERING AIRFLOW CFM3240
  • FINAL AIR TEMPERATURE °F (STEAM)106
  • FINAL AIR TEMPERATURE °F (HOT WATER)96
  • VOLTAGE120
  • PHASE1
  • HORSEPOWER1/3
  • HEAT THROW FEET40
  • WATER FLOW (GPM)13.6
  • TYPEHorizontal
  • LISTING, RATING, CERTIFICATIONCSA Certified
  • LIMITED WARRANTY YEARS1
  • MANUFACTURER PART NUMBERHSB165SB06SA
  • HEAT SPREAD FEET--
