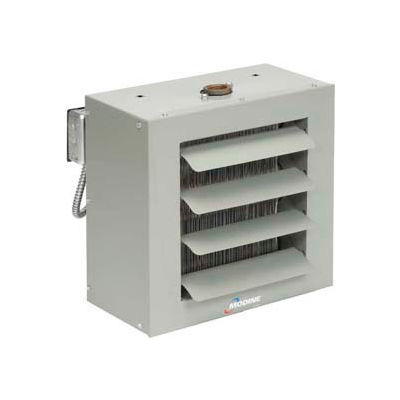

Modine Steam or Hot Water Unit Heater With Explosion Proof Motor HSB47SB06SA, 47000 BTU

Modine Steam or Hot Water Unit Heater With Explosion Proof Motor HSB47SB06SA, 47000 BTU

Item #: WBB631209

(1)

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,453.00

Quantity

Popular item in this category

Customers Also Viewed

Modine 47000 BTU Steam or Hot Water Unit Heater With Explosion Proof Motor

The Modine HSB33 Horizontal Hydronic Unit Heater Features:

  • Horizontal airflow
  • Top and bottom steel female pipe connections. This permits the unit to be rotated 360° without piping changes
  • Copper tubes
  • Aluminum fins
  • Adjustable louvers
  • Balanced fan
  • Fan guard
  • Motor and electrical junction box
  • Units have a 2-piece casing for easy coil access
  • HSB models have tapped holes for suspension by threaded rod or optional pipe hanger adapter kit
  • Serpentine copper tube coil design has high resistance to thermal shock, even under high steam pressures
  • Absence of coil headers eliminates potential leaks and increases coil face area without increasing the size of unit
  • Coil designed for greater water carrying capacity with lower friction loss
  • CSA certified.
  • MADE IN U.S.A. 1 Year Limited warranty.

Click below to view the following:

Product Specifications

  • BRANDModine
  • LENGTH INCHES17-1/2
  • WIDTH INCHES21
  • HEIGHT INCHES16-3/8
  • CONNECTION SIZE INCHES1-1/4
  • FAN DIAMETER INCHES12
  • MAXIMUM MOUNTING HEIGHT FEET12
  • WEIGHT LBS36
  • CONSTRUCTIONSteel
  • INPUT (BTU/H) 2 LB STEAM 60°F ENTERING AIR47000
  • OUTPUT (BTU) HOT WATER 200°F IN 60°F ENTERING AIR30900
  • ENTERING AIRFLOW CFM730
  • FINAL AIR TEMPERATURE °F (STEAM)119
  • FINAL AIR TEMPERATURE °F (HOT WATER)98
  • VOLTAGE120
  • PHASE1
  • HORSEPOWER1/12
  • HEAT THROW FEET28
  • WATER FLOW (GPM)3.2
  • TYPEHorizontal
  • LISTING, RATING, CERTIFICATIONCSA Certified
  • LIMITED WARRANTY YEARS1
  • MANUFACTURER PART NUMBERHSB47SB06SA
  • HEAT SPREAD FEET--
Customer Review

5.0

  • 5 Star

    1
  • 4 Star

    0
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: Randy Miller

    Date: December 11, 2012

    Modine Heater a quality item
    Your review:
    This unit is a good performer, and is fairly simple to install. On the downside, the manufacturer chooses to provide connections for this size with 1 1/4" screwed connections, mandating an odd-size screwed fittings purchase. Global was able to provide me with one, not two of these units on a timely basis, which is why we cancelled order for the 2nd.
Product Q & A

There are no questions for this product.

See More Questions & Answers

Warranty

This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
