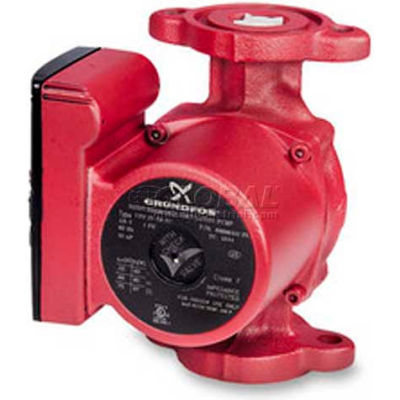

The Grundfos circulator pumps, Series UP, are specifically designed for heating systems. The pumps are also suitable for circulation of hot domestic water and for circulation of liquid in cooling and air-conditioning systems.
Features:
- Bronze and stainless steel construction.
- Wet rotor design.
- Composite impeller.
- Eliminates and prevents corrosive effects of fresh water.
- Maintenance-free, low energy consumption, easy to install, quiet running.
- Improved performance and efficiency.
- Pre-program usage times to save power.
- No additional wiring required.
- Adds to savings by operating pump by sensing the water temperature with optional timer and aquastat.
- Made in the USA.
Product Specifications
- BRANDGrundfos
- LENGTH INCHES4
- WIDTH INCHES6-1/2
- HEIGHT INCHES6-1/2
- WEIGHT LBS5.96
- COLORRed
- HOUSING MATERIALCast iron
- IMPELLER MATERIALComposite, PES
- PRESSURE PSI145
- VOLTAGE1.1
- MAXIMUM AMBIENT TEMPERATURE °F104 °F
- HERTZ60
- HORSEPOWER1/25
- CONNECTION TYPECast Iron Flange
- APPROVALS OR CERTIFICATIONSUL, CSA
- LIMITED WARRANTY YEARS1
- MANUFACTURER'S PART NUMBER59896300
- MODELUP15-100F
- FLANGE STANDARDUSA Oval
- AMBIENT MAX AT 176°F LIQUID176 °F
- PORT TO PORT LENGTH INCHES6-1/2
- PIPE CONNECTION2 - Bolt Flange
- NUMBER OF POLES2
- CAPACITOR SIZE - RUN12 μF/180 V
- MAX. POWER INPUT135 W
- HEAD FEET0-36.1
- SYSTEM TYPEClosed
- THERMAL PROTECTIONInternal
- MOTOR PROTECTIONContact
- POS TERM BOX9H
- FLOW U.S. GPM0-8.37
- MAX. AMPS1.1
- MAX. WATTS135
- NUMBER OF SPEEDS1
- MAXIMUM FLUID TEMPERATURE °F204.8°F
- MINIMUM FLUID TEMPERATURE °F35.6°
