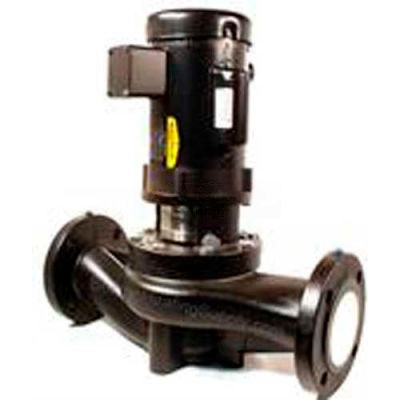

GrundfosVersaFlo® TP80-80/4 TP Circulator Pump 96411819, Cast Iron, 1-1/2 HP, Single Phase

GrundfosVersaFlo® TP80-80/4 TP Circulator Pump 96411819, Cast Iron, 1-1/2 HP, Single Phase

Item #: WBB1012647

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $2,614.00

$435.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $2,614.00 or save 5% on purchase.

Quantity

GrundfosVersaFlo® TP80-80/4 TP Circulator Pump 96411819, Cast Iron, 1-1/2 HP, Single Phase

This pump model is notable for its high levels of reliability and efficiency. Quiet, highly-efficient motors are standard components. All TP pumps are electro-coated to ensure high corrosion resistance.

Features:

  • Optimized hydraulics for high efficiency
  • Reduced power consumption
  • TP pumps are fitted with high-efficiency motors
  • 2-pole and 4-pole TP pumps from 1/3 hp to 3 hp
  • Top-pull-out design
  • Easy dismantling for service
  • In-line design
  • Unlike end-suction pumps, in-line pumps allow the use of straight pipe work, which often results in reductions in installation cost and amount of space occupied
  • The impeller is hydraulically and mechanically balanced to increase the life of motor bearings and shaft seals
  • Pump housing and pump head/motor stool are electro-coated
  • Improved corrosion resistance
  • Industry standard flange-to-flange dimensions for easy retrofit applications
  • ODP or TEFC motor options for maximum installation versatility
  • Stainless steel impeller and seal ring for extended pump life
  • Made in the USA.

Click for Spec Sheet


Product Specifications

  • BRANDGrundfos
  • LENGTH INCHES8
  • WIDTH INCHES14
  • HEIGHT INCHES20-1/4
  • WEIGHT LBS120.33
  • COLORRed
  • DIAPHRAGM CONSTRUCTIONBUBE
  • HOUSING MATERIALCast Iron
  • IMPELLER MATERIALStainless Steel
  • PRESSURE PSI145
  • MAXIMUM RPM1725
  • VOLTAGE115/ 208 / 220 / 230
  • MAXIMUM AMBIENT TEMPERATURE °F104 °F
  • PHASE3
  • HERTZ60
  • HORSEPOWER1-1/2
  • MOTOR TYPETEFC
  • APPROVALS OR CERTIFICATIONSUL, CSA
  • LIMITED WARRANTY YEARS1
  • MANUFACTURER'S PART NUMBER96411827
  • MODELTP80-80/4
  • TEMPERATURE RANGE °F5°F (–15°C) to 284°* (140°C)
  • NUMBER OF POLES4
  • HEAD FEET0-26.2
  • FLOW U.S. GPM0-163
Customer Review

Not Yet Reviewed

Product Q & A

There are no questions for this product.

Accessories
Warranty

This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
