Boiler Feed Unit Duplex 200HBFD 3020

Boiler Feed Unit Duplex 200HBFD 3020

Item #: WBB46825

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $4,498.00

$749.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $4,498.00 or save 5% on purchase.

Quantity

Customers Also Viewed

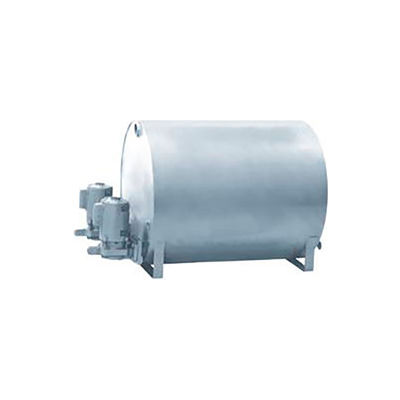

Boiler Feed Unit Duplex 200HBFD 3020
Boiler Feed Tank with duplex pumps for steam systems up to 27,800 sq. ft. EDR, 220 gal receiver 172 gal of usable storage. Boiler feed units are used to return condensate to the boiler. Boiler feed units feature a heavy gauge steel receiver with corrosion resistant HoffGuard™ gray coating. Epoxy powder coat inside and out with an expoy overcoat. Includes a low height NPT inlet for easy return line piping and NPT drain connection. Separate NPT connections provide a secondary vent for safe operation. Float operated, internal water make-up valve adds cold water at low level. Boiler feed units include a water level gauge with protective brass rods and shut-off valves. Pump seal offers a maximum temperature of 250°F. 3,500 CFM. 115/208-230V. ISO 9001 certified. One Year Limited Warranty.

Product Specifications

  • BRANDHoffman Specialty
  • LENGTH INCHES88-1/2
  • WIDTH INCHES32
  • HEIGHT INCHES31
  • COLORGray
  • CONSTRUCTIONSteel
  • TANK MATERIALSteel
  • TOP FINISHHoffGuard®
  • SEAL MAX TEMPERATURE [F]250
  • UNIT MAX TEMPERATURE [F]210
  • VOLTAGE115 / 208-230
  • PHASE1
  • HERTZ60
  • WATTS370
  • HORSEPOWER1/2
  • CONNECTION TYPEVented
  • MOTOR TYPEOpen Drip Proof
  • TYPEDuplex
  • MANUFACTURER'S PART NUMBER161058
  • MODEL200HBFD-3020
  • CAPACITY GPM30
  • LIMITES WARRANTY YEARS1
  • DISCHARGE PRESSURE PSIG20
  • RECEIVER CAPACITY GALLONS200
