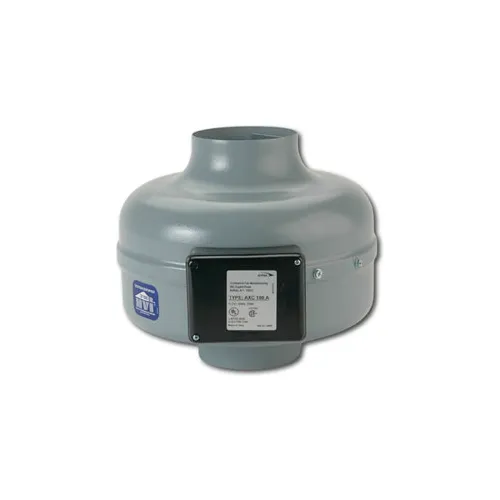

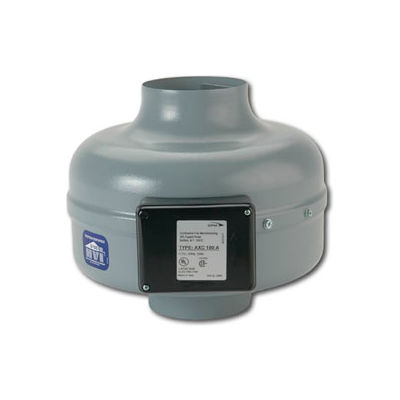

Continental Fan AXC100B In-Line Duct Fan 4"

Continental Fan AXC100B In-Line Duct Fan 4"

Item #: WB245979

(2)

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $137.95

Save $6.90 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Global Industrial™ 6" Galvanized Steel Inline Duct Fan W/ Energy Star Rating

Global Industrial™ 6" Galvanized Steel Inline Duct Fan W/ Energy Star Rating

Continental Fan AXC200B-ES In-Line Duct Fan 8" Energy Star 579 CFM

Continental Fan AXC200B-ES In-Line Duct Fan 8" Energy Star 579 CFM

Cleveland Controls Switch DFS-221-112-418 Air Pressure Sensing Fixed Set Point

Cleveland Controls Switch DFS-221-112-418 Air Pressure Sensing Fixed Set Point

Continental Fan AXC150A-ES In-Line Duct Fan 6" Energy Star 235 CFM

Continental Fan AXC150A-ES In-Line Duct Fan 6" Energy Star 235 CFM

Global Industrial™ 8" Galvanized Steel Inline Duct Fan W/ Energy Star Rating

Global Industrial™ 8" Galvanized Steel Inline Duct Fan W/ Energy Star Rating

Global Industrial™ 10" Galvanized Steel Inline Duct Fan W/ Energy Star Rating

Global Industrial™ 10" Galvanized Steel Inline Duct Fan W/ Energy Star Rating

Continental Fan EXT200B External Duct Fan Mount 8" 420 CFM

Continental Fan EXT200B External Duct Fan Mount 8" 420 CFM

Vortex Inline Duct Blower Fan Plus 12"

Vortex Inline Duct Blower Fan Plus 12"

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Continental Dynamics® Direct Drive 30" Exhaust Fan w/ Shutter, 1 Speed, 8000CFM, 1/4 HP, 1Phase

Continental Dynamics® Direct Drive 30" Exhaust Fan w/ Shutter, 1 Speed, 8000CFM, 1/4 HP, 1Phase

Continental Dynamics® Direct Drive 24" Exhaust Fan w/ Shutter, 2 Speed, 7000 CFM, 1/4HP, 1Phase

Continental Dynamics® Direct Drive 24" Exhaust Fan w/ Shutter, 2 Speed, 7000 CFM, 1/4HP, 1Phase

Continental Dynamics® Direct Drive 10" Exhaust Fan W/ Shutter, 1 Speed, 1500CFM, 1/30HP, 1Phase

Continental Dynamics® Direct Drive 10" Exhaust Fan W/ Shutter, 1 Speed, 1500CFM, 1/30HP, 1Phase

Small Room Commercial Fan Forced Wall Heater W/ Integral Double Pole Thermostat, 2000 Watt, 240V

Small Room Commercial Fan Forced Wall Heater W/ Integral Double Pole Thermostat, 2000 Watt, 240V

IN-LINE RANGE HOOD EXHAUST FANS
AXC in-line duct fans are the ideal air movers for residential, commercial, and light industrial ventilation applications. The quiet and efficient backward-curved impeller is capable of developing significant pressure, and the in-line configuration simplifies installation, saving time and money! AXC sizes range from 4" to 14", with airflows ranging from 147 cfm to 1400 cfm. The unique motor design, combined with high-quality materials and workmanship, results in a truly versatile fan.

Features & Benefits of AXC In-line Duct Fans
  • Heavy-gauge, drawn steel housing with baked epoxy finish .
  • 120V operation, other voltages available .
  • Easy to install – mounting brackets included .
  • May be mounted in any position .
  • Fans may be used to supply or exhaust air .
  • Suitable for air temperatures up to 140 F / 60 C .
  • Energy efficient – speed controllable (optional solid state speed control) .
  • Optional pre-wired with 120V power cord (AXC-C) .
  • Exceptionally quiet and efficient BC centrifugal motorized impeller .
  • External rotor motor design results in superior motor cooling and durability .
  • Permanently lubricated ball bearing motor for maintenance-free operation .
  • Automatic reset thermal overload protection .
  • Fan and motor are precision balanced for quiet and vibration-free operation .
  • Easily accessible, external junction box with pre-wired capacitor .
  • Five year warranty .
  • Fans are HVI certified for airflow and power at 0.2" SP.

AXC in-line duct fans can solve many air moving problems. They are designed to boost airflow through long or complex duct runs, and provide ideal solutions for areas that are hard to heat or cool.

Bathroom Exhaust
AXC in-line duct fans are the strongest and quietest bathroom fans available today. These fans allow the exhaust of multiple vents or bathrooms with one fan. They are user friendly, easy to install, and can be located directly over a shower.
Range Hood Exhaust
AXC in-line duct fans can be used as a principle exhaust fan, or as a booster fan to improve the efficiency of an existing residential range hood. These fans can be variable speed controlled by using an independent speed controller, or by tying into an existing range hood controller. The heavy gauge housing, with epoxy coating inside and out, provides a rugged fan with superior corrosion protection.
Duct Boosting
Many homes and office buildings have at least one area that presents a problem for heating or cooling. AXC in-line duct fans are designed to boost airflow through long or complex duct runs, resulting in better air comfort in the "problem" areas.

Weights & Dimensions

  • Duct Size 4 in
  • Inlet/Outlet Diameter 3-15/16 in
  • Length 8-5/16 in
  • Height 9-1/2 in
  • Weight 6.5 lbs

Product Details

  • Amperage 0.69 A
  • Material Steel
  • RPM High Range 2000-3000 rpm
  • RPM High 2,400 rpm
  • Voltage Range 115-120 V
  • Voltage 120 V
  • CFM High 150 CFM
  • Motor Type Totally Enclosed
  • Phase 1
  • Amps Range 0-1 A
  • Watts 85 W
  • Brand Continental Fan
  • Hertz 60 Hz
  • Decibels 54
  • Manufacturers Part Number AXC100B
  • Color Family Gray

Warranty

  • Warranty 5 yr

Compliance & Certifications

  • Certifications CSA & UL Listed
Customer Review

5.0

  • 5 Star

    2
  • 4 Star

    0
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: Emily

    Date: July 15, 2022

    Satisfied
    Your review:
    Well packaged and works as expected
  • Reviewer: Anonymous

    Date: January 07, 2018

    Only 11 years ?
    Your review:
    We installed this fan when we built the new house and hooked to an air pressure switch on our clothes dryer that needed to exhaust 2' higher that the dryer duct. It has worked flawlessly for 11 yrs. it started making sounds and I will be replacing it with the same model. it increased the dryer performance drying time 25-35%
Product Q & A

There are no questions for this product.

Warranty

This product has a 60-month manufacturer's limited warranty for parts and a 60-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
