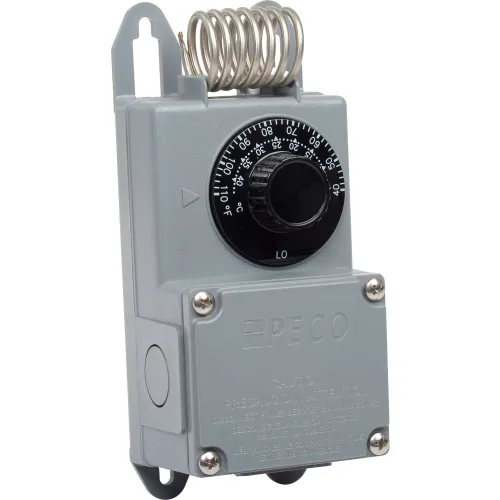

PECO Industrial Coiled Temperature Controller TF115-001 Temp. Range 40°-110°F w/ Nema 4X

PECO Industrial Coiled Temperature Controller TF115-001 Temp. Range 40°-110°F w/ Nema 4X

Item #: WBB592423

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $48.95

Save $2.45 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

PECO Industrial Temperature Controller W/ Power Cord TF115P-002 Range 40°-110°F Nema 4X

PECO Industrial Temperature Controller W/ Power Cord TF115P-002 Range 40°-110°F Nema 4X

PECO Industrial Temperature Controller TRF115-007 Tmp. Range -30°-100°F Rmt. Bulb Nema 4X

PECO Industrial Temperature Controller TRF115-007 Tmp. Range -30°-100°F Rmt. Bulb Nema 4X

King Forced Air Wall Heater W1210-W, 1000W, 120V, White

King Forced Air Wall Heater W1210-W, 1000W, 120V, White

PECO Industrial Coiled Temperature Controller TF115-023 Temp. Range -30°-100°F w/ Nema 4X

PECO Industrial Coiled Temperature Controller TF115-023 Temp. Range -30°-100°F w/ Nema 4X

PECO Industrial Temperature Controller TRF115-005 Tmp. Range 0°-120°F Rmt. Bulb Nema 4X

PECO Industrial Temperature Controller TRF115-005 Tmp. Range 0°-120°F Rmt. Bulb Nema 4X

PECO Industrial Multi-Stg. Temperature Controller TH109-009 Temp. Range 40°-100°F Nema 4X

PECO Industrial Multi-Stg. Temperature Controller TH109-009 Temp. Range 40°-100°F Nema 4X

Johnson Controls Temperature Controller A19QSC-1C Remote Bulb w/ Nema 4X Enclosure

Johnson Controls Temperature Controller A19QSC-1C Remote Bulb w/ Nema 4X Enclosure

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Continental Dynamics® Direct Drive 12" Exhaust Fan W/ Shutter, 3 Speed, 2150CFM, 1/12HP, 1Phase

Continental Dynamics® Direct Drive 12" Exhaust Fan W/ Shutter, 3 Speed, 2150CFM, 1/12HP, 1Phase

Simplehuman® Steel Stainless Bullet Open Top Trash Can, 16 Gallon

Simplehuman® Steel Stainless Bullet Open Top Trash Can, 16 Gallon

MaxxAir™ 14" Heavy Duty Exhaust Fan W/ Integrated Shutter, 1/8 HP

MaxxAir™ 14" Heavy Duty Exhaust Fan W/ Integrated Shutter, 1/8 HP

Honeywell RedLINK™ Internet Gateway Connection THM6000R7001

Honeywell RedLINK™ Internet Gateway Connection THM6000R7001

Qwik Products X1 Universal Constant Torque ECM replacement board, QT6101 - Pkg Qty 5

Qwik Products X1 Universal Constant Torque ECM replacement board, QT6101 - Pkg Qty 5

Honeywell One Or Two Rod Intermittent Pilot Control 15 Or 90 Seconds S8610U3009

Honeywell One Or Two Rod Intermittent Pilot Control 15 Or 90 Seconds S8610U3009

PECO Industrial Coiled Temperature Controller TF115-001 Temperature Range 40°-110°F with Nema 4X Enclosure

Features:

  • T115 thermostat offers one control for Heating or Cooling
  • Its NEMA 4X Enclosure Complies with N.E.C. Article 547
  • The low mass, high surface area of stainless steel coiled sensor provides rapid response to temperature change
  • Featuring SPDT switches
  • Delivers reliable temperature control for industrial, commercial, and agricultural applications
  • 1 Heat, 1 Cool Stage
  • 1 Year Warranty

Product Details

  • Bulb Coiled Air - Stainless
  • Switch Action SPDT
  • Voltage 277 / 240 / 208 / 120 / 24 V
  • Amps @ 277V 110 AMP FLA; 50A LRA; 22 AMP Non-Inductive; 125 VA Pilot Duty A
  • Temperature Control Range 40 to 110 °F
  • Power Type Hardwired
  • Amps @ 208V 13.2 AMP FLA; 66A LRA; 25 AMP Non-Inductive; 125 VA Pilot Duty A
  • Type Mechanical
  • For Use With Refrigeration / Industrial / Agricultural
  • Differential Temperature 3 °F
  • Stages Single
  • Brand Peco
  • Temperature Operating Range 40 to 110 °F
  • Warranty 1 yr
  • Manufacturers Part Number TF115-001
  • Amps @ 120V 16 AMP FLA; 80A LRA; 25 AMP Non-Inductive; 125 VA Pilot Duty A
  • Amps @ 240V 12 AMP FLA; 60A LRA; 25 AMP Non-Inductive; 125 VA Pilot Duty A

Weights & Dimensions

  • Physical Dimensions 3.1"W x 6.5"H x 2.5"D
  • Capillary Length Coiled Capillary ft

Compliance & Certifications

  • NEMA Rating 4X
  • Certifications UL, CSA
