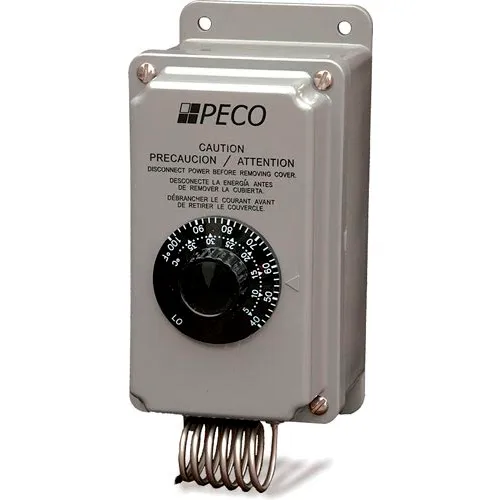

PECO Industrial Multi-Stg. Temperature Controller TH109-009 Temp. Range 40°-100°F Nema 4X

PECO Industrial Multi-Stg. Temperature Controller TH109-009 Temp. Range 40°-100°F Nema 4X

Item #: WBB592425

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $109.95

Save $5.50 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

PECO Industrial Coiled Temperature Controller TF115-001 Temp. Range 40°-110°F w/ Nema 4X

PECO Industrial Coiled Temperature Controller TF115-001 Temp. Range 40°-110°F w/ Nema 4X

PECO Industrial Coiled Temperature Controller TF115-023 Temp. Range -30°-100°F w/ Nema 4X

PECO Industrial Coiled Temperature Controller TF115-023 Temp. Range -30°-100°F w/ Nema 4X

PECO Industrial Temperature Controller W/ Power Cord TF115P-002 Range 40°-110°F Nema 4X

PECO Industrial Temperature Controller W/ Power Cord TF115P-002 Range 40°-110°F Nema 4X

Johnson Controls Temperature Controller A19QSC-1C Remote Bulb w/ Nema 4X Enclosure

Johnson Controls Temperature Controller A19QSC-1C Remote Bulb w/ Nema 4X Enclosure

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Qwik Products X1 Universal Constant Torque ECM replacement board, QT6101 - Pkg Qty 5

Qwik Products X1 Universal Constant Torque ECM replacement board, QT6101 - Pkg Qty 5

PECO Industrial Multi-Stage Temperature Controller TH109-009 Temperature Range 40°-100°F with Nema 4X Enclosure

Features:

  • The TH109 thermostat has a 40 - 100°F range
  • Molded plastic enclosure and stainless steel hardware
  • These UL Listed thermostats meet the requirements for NEMA 4X equipment
  • Suitable for use under the National Electric Code (N.E.C.) Article 547-4, when used with appropriate watertight connections
  • The TH109 features two SPDT switches staged 3øF apart
  • It delivers reliable temperature control for industrial, commercial and agricultural applications
  • 2 Stage Heat, 2 Stage Cool
  • 1 Year Warranty

Weights & Dimensions

  • Physical Dimensions 3.1"W x 6.5"H x 4.9"D
  • Capillary Length Coiled Capillary ft

Product Details

  • Bulb Coiled Air - Stainless
  • Switch Action 2 - SPDT
  • Voltage 277 / 240 / 208 / 120 / 24 V
  • Amps @ 277V 110 AMP FLA; 50A LRA; 22 AMP Non-Inductive; 125 VA Pilot Duty A
  • Power Type Hardwired
  • Temperature Control Range 40 to 100 °F
  • Amps @ 208V 13.2 AMP FLA; 66A LRA; 25 AMP Non-Inductive; 125 VA Pilot Duty A
  • Type Mechanical
  • For Use With Refrigeration / Industrial / Agricultural
  • Differential Temperature 3 / Stage °F
  • Brand Peco
  • Stages 2
  • Temperature Operating Range 0 to 100 °F
  • Manufacturers Part Number TH109-009
  • Amps @ 120V 16 AMP FLA; 80A LRA; 25 AMP Non-Inductive; 125 VA Pilot Duty A
  • Amps @ 240V 12 AMP FLA; 60A LRA; 25 AMP Non-Inductive; 125 VA Pilot Duty A

Warranty

  • Warranty 1 yr

Compliance & Certifications

  • Certifications UL, CSA
  • NEMA Rating 4X
Customer Review

Not Yet Reviewed

Product Q & A

There are 1 questions and 1 answer for this product.

  • Is this product suitable for calss-1 dev 2 group D area classification?

    Question Asked By: April 12, 2012

    Answer This Question

    Question Answered By:

    • Product Expert, April 12, 2012

      The item has not been tested for that specific classification.
