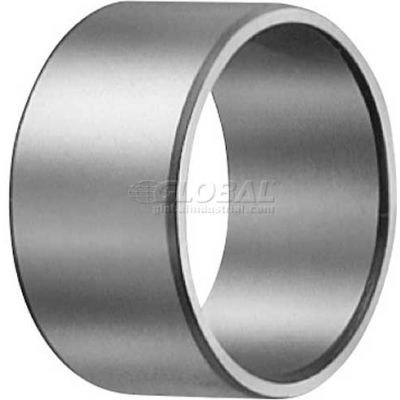

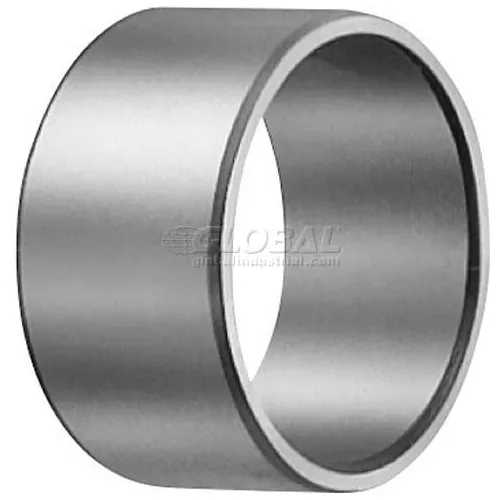

IKO Inner Ring for Shell Type Needle Roller Bearing METRIC, 20mm Bore, 24mm OD, 16.5mm Width, Part# IRT2016
IKO Inner Rings are heat-treated and finished by grinding to obtain rigidity and accuracy.
Use IKO Inner Rings when shafts cannot be hardened to HRC 58 to 64 and cannot obtain 0.2μmRa or less surface finish.
IKO Inner Rings are heat-treated and finished by grinding to obtain rigidity and accuracy.
Use IKO Inner Rings when shafts cannot be hardened to HRC 58 to 64 and cannot obtain 0.2μmRa or less surface finish.
Weights & Dimensions
- Outside Dimension Tolerance -0.007 / -0.016 mm
- Bore (D) 20 in
- Bore Tolerance +0 / -0.010
- Width (B) 16.5
- Width Tolerance +0 / -0.120
- Min Inner Ring Corner Radius 0.3 in
Product Details
- Outside Dimension (F) 24 mm
- Description Inner Ring for Shell Type Needle Roller Bearing - METRIC
- Shaft Shoulder (da) Min 22 mm
- Shaft Shoulder (da) Max 23 mm
- Brand IKO
- Manufacturers Part Number IRT2016
- Appropriate Outer Ring TA243216Z
Customer Review
Product Q & A
There are no questions for this product.

IKO Inner Ring for Shell Type Needle Roller Bearing METRIC, 20mm Bore, 24mm OD, 16.5mm Width
$7.6
