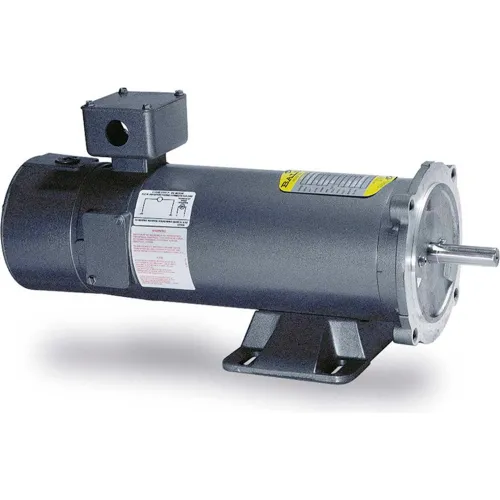

Baldor-Reliance Intergral Tach DC Motor, CDPT3436, 0.75 HP, 1750 RPM, TEFC, 56C Frame

Marathon Motors are designed meet the new Energy Efficient standards. These Motors are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction. Horsepower ranges from 1/3 - 400 Hp.

Baldor-Reliance Lifting Magnet Generators provide power for lifting electro-magnets used in scrap and bulk metal handling facilities. Horizontal motors may be belted from the diesel engine or the motors with C-faces may be coupled to the PTO drive of the crane. Features Heavy duty steel frame Cast iron endplates Class H insulation with Class F temperature rise Precision brush holders Constant force brush springs Double sealed ball bearings Compound wound with drooping voltage characteristics DPFG enclosure Weather resistant paint F-2 conduit box Application(s) Crane mounted lifting ...

Baldor-Reliance Motor, .33HP,1750RPM,DC,56C,3327P,TENV,F1 Features: Provides an integral 50 VDC per 1000 RPM precision tachometer for closed loop drive system Class F insulation 20:1 constant torque speed range with NEMA Type control 3300P motors TENV, all others are TEFC Typical Applications: Conveyors and metering pumps where precise speed regulation is required.

Baldor-Reliance Motor, .25HP,1750RPM,DC,56C,3320P,TENV,F1 Features: Provides an integral 50 VDC per 1000 RPM precision tachometer for closed loop drive system Class F insulation 20:1 constant torque speed range with NEMA Type control 3300P motors TENV, all others are TEFC Typical Applications: Conveyors and metering pumps where precise speed regulation is required.

Permanent Magnet DC Motors are available for 1/4 - 2 HP and wound field motors of 1/2 - 3 HP for Class I, Group D and Class II, Group F & G locations with listing by both UL and CSA. Applications include conveyors and mixers in hazardous locations. Features NEMA C-Face with welded on base UL and CSA certified Class I, Group D / Clas II Group F&G. T3c Thermostat and explosion proof conduit box included Not tach adaptable Application(s) Conveyors, feeders and pumps where variable speed and constant torque are required in hazardous locations.
