Interlake Mecalux Pallet Rack Tear Drop Beam 48"L - 5620 Lbs Cap

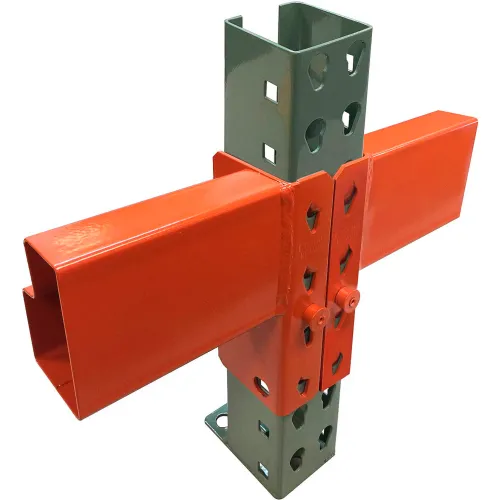

✓16-gauge steel beams ✓5610 lb. shelf capacity (per pair) ✓ Compatible with teardrop-style uprights GLOBAL TEAR DROP PALLET RACK Beams High strength one-piece tube-seamed steel beams. Powder coat baked polyester finish. 1-5/8"H step beam design accommodates cross bars and decking. Beams provide secure connections to upright frames using 3 button studs on the connector plate ends. 3-button studs provide positive locking, along with the self-engaging spring-loaded Safety Piston. Full "C" type weld construction ensures maximum durability under all conditions. To ...

Penco has engineered its roll-formed one piece beam to achieve the highest possible strength-to-weight ratios in the most frequently desired load ratings through the use of efficient design and high strength steel. The face of the beam has an M-design recessed configuration for added strength, protecting the locking key, and to accept pressure sensitive labeling. Each beam is stamped with an identifying letter referring to the load bearing capacity. Beams are finished in 710 Sagebrush Yellow baked enamel for high visibility.

Interlake Mecalux - Bulk Rack Storage Upright Frame Bulk rack storage upright frames are the vertical elements of the bulk rack storage system. They are recentagular in shape and come in a variety of heights and depths. Product Features: A bulk rack storage upright frame comes pre-assembled via botled design. Upright frame posts are connected to a series struts and foot plates. Front facing upright frame punching at every 2" to allow adaptable beam movement. Side punching to allow connection of accessories such as row spacers or wall ties. Heavy duty foot plates allow the ability to ...

4"H Beam for Structural Steel Pallet Rack Beams bolt to Upright Frames to secure connection and help prevent accidental dislodging. Adjust on 2" increments. Each pair of beams includes one front to back brace. Gray enamel. Meets AISC and RMI standards. Sold in pairs.

Interlake Mecalux assembled tear drop bolted pallet rack upright frame This style of pallet rack upright frames provides versatility for warehouses that have wide varieties of product types. Bolted pallet racking is ideal for any warehouse, offering direct access to each pallet, simple stock management and adaptation to any product volume, weight or size. It is manufactured from high-strength steel and other quality raw materials. Product Features: Bolted pallet rack upright frames come pre-assembled for easy customer set-up. Bolted pallet rack uprights allow flexible configuration and ...
