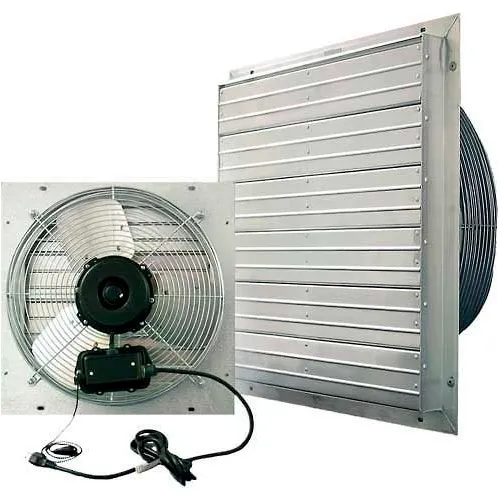

J&D Manufacturing 20" ES Shutter Fan W/ 9' Power Cord, 1/10 HP, Single Phase

J&D Manufacturing 20" ES Shutter Fan W/ 9' Power Cord, 1/10 HP, Single Phase

Item #: WBB968411

(9)

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $315.95

Save $15.80 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

J&D Manufacturing 24" ES Shutter Fan W/ 10' Power Cord, 1/2 HP, Single Phase

J&D Manufacturing 24" ES Shutter Fan W/ 10' Power Cord, 1/2 HP, Single Phase

Vostermans Mechanical Thermostat For Fan Or Heater Single Pole

Vostermans Mechanical Thermostat For Fan Or Heater Single Pole

J&D Manufacturing 24" ES Shutter Fan, 1/2 HP, Single Phase

J&D Manufacturing 24" ES Shutter Fan, 1/2 HP, Single Phase

J&D Manufacturing 12" ES Shutter Fan W/ 9' Power Cord, 1/30 HP, Single Phase

J&D Manufacturing 12" ES Shutter Fan W/ 9' Power Cord, 1/30 HP, Single Phase

J&D Manufacturing 24" ES Shutter Fan W/ 9' Power Cord, 1/10 HP, Single Phase

J&D Manufacturing 24" ES Shutter Fan W/ 9' Power Cord, 1/10 HP, Single Phase

J&D Manufacturing 10" ES Shutter Fan W/ 9' Power Cord, 1/8 HP, Single Phase

J&D Manufacturing 10" ES Shutter Fan W/ 9' Power Cord, 1/8 HP, Single Phase

1/2 Hp Motor For Global Industrial™ 30" Deluxe Pedestal Fan Model 652299 Gray

1/2 Hp Motor For Global Industrial™ 30" Deluxe Pedestal Fan Model 652299 Gray

Continental Dynamics® Direct Drive 30" Exhaust Fan w/ Shutter, 1 Speed, 8000CFM, 1/4 HP, 1Phase

Continental Dynamics® Direct Drive 30" Exhaust Fan w/ Shutter, 1 Speed, 8000CFM, 1/4 HP, 1Phase

Continental Dynamics® Direct Drive 24" Exhaust Fan w/ Shutter, 2 Speed, 7000 CFM, 1/4HP, 1Phase

Continental Dynamics® Direct Drive 24" Exhaust Fan w/ Shutter, 2 Speed, 7000 CFM, 1/4HP, 1Phase

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Global Industrial™ 18" Industrial Floor Fan, 4,550 CFM, 1/8 HP, 1 Phase

Global Industrial™ 18" Industrial Floor Fan, 4,550 CFM, 1/8 HP, 1 Phase

Aluminum Supply (Intake) Wall Shutter 20" - CWV-20x20

Aluminum Supply (Intake) Wall Shutter 20" - CWV-20x20

J&D 50" Galvanized Wall Master Exhaust Fan Belt Drive 1hp 3 Ph. Cast Alum. Blade

J&D 50" Galvanized Wall Master Exhaust Fan Belt Drive 1hp 3 Ph. Cast Alum. Blade

J&D Manufacturing's ES shutter fan is a durable agriculture grade exhaust fan perfect for barn and building peaks, greenhouses, warehouses and more. ES shutter fans are available without a cord, or pre-wired with a cord and plug for no electrician required installation. Fans ship fully assembled out of the box so you're up and running in no time.

Features:
  • 20" Indoor/Outdoor shutter fan comes assembled
  • Blade and 1/10HP three speed outdoor rated UL507 motor combine to produce 4220 CFM
  • Includes 9', 115V, 3 prong grounded cord attached
  • Energy efficient motor has completely sealed ball bearings and is maintenance free
  • Aluminum shutter includes tie bar to reduce flapping in the wind
  • One piece solid venture adds stability and reduces noise
  • Limited warranty of 2 years


Weights & Dimensions

  • Rough Opening 20-1/2 X 20-1/2 in
  • Width 24 in
  • Fan Diameter 20 in
  • Cord Length 9 ft
  • Height 24 in
  • Depth 11 in
  • Weight 29 lbs

Product Details

  • CFM Medium 3250 CFM
  • Number of Blades 3
  • Kilowatts 0.172 kW
  • Mounting Location Wall
  • Number of Speeds 3
  • Assembly Required Assembled
  • Amperage 1.50 A
  • Drive Type Direct Drive
  • Material Aluminum
  • CFM Low 2,130 CFM
  • RPM High 1,570 rpm
  • Voltage 115 V
  • Horsepower 1/10 HP
  • Power Cord Included Yes
  • Phase 1
  • CFM High 4220 CFM
  • RPM Low 1,000 rpm
  • Watts 172.5 W
  • Brand J&D Manufacturing
  • Hertz 60 Hz
  • Manufacturers Part Number VPES20
  • Color Family Silver
  • Fan Type Outdoor / Indoor

Warranty

  • Warranty 2 yr
Customer Review

5.0

  • 5 Star

    7
  • 4 Star

    2
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: Noah

    Date: May 11, 2022

    Good fan, flexible application
    Your review:
    I built a plywood frame for this fan to stick in a window on summer nights, drawing in cooler air. Basically, I use it as a makeshift whole house fan. My house is solid brick, and unfortunately there are no trees shading the walls or roof. This fan definitely helps to move air quickly throughout the house. I just turn it on and then open windows in other rooms, and it helps to really draw out the heat from the house, where using the my AC would just allow the house to continually heat back up and then kick on. The only downside is that it is rather loud, but that's OK, as it's mostly on when I'm sleeping, and provides a relaxing drone. Disclaimer, this only really works if you don't keep your house very cold in summer. I set my thermostat at 76°F, which I think is comfortable enough, and which is higher than the outside temperature on all but the hottest summer nights. Depending on winds it helps to have a second, cheapo box fan blowing air IN from other side of the house.
  • Reviewer: Arthur

    Date: June 16, 2021

    Prop Wash
    Your review:
    This thing is like a prop on a plane! I literally get a wind coming in my 6X12 greenhouse when I turn it all the way up.
  • Reviewer: thomas

    Date: March 27, 2021

    Exactly what they Describe and a very good fan
    Your review:
    Fan arrived quickly, (faster than i get stuff from other on line retailers) The fan is ready to use out of the box. It is exactly what their website describes. It works great. The 3 speed fan is convenient and at high speed this thing really blows! I use it in my small woodworking shop to help with dust and it has really made a difference.
  • Reviewer: ROY

    Date: November 09, 2020

    Great working fan
    Your review:
    This fan is very quiet and clears the welding smoke from the shop incredibly fast. Love this fan for a 40X60 machine shop. It was also very easy to install.
  • Reviewer: Anonymous

    Date: March 08, 2016

    20" fan
    Your review:
    installed in peak of greenhouse to exchange air. Great fan for the money!
  • Reviewer: Anonymous

    Date: February 10, 2014

    J & D ES Fans are the best BANG FOR YOUR BUCK!!
    Your review:
    It was a little difficult figuring out which fans had what and the service dept. wasn't much help when I called in but I took a chance and ordered anyway under my best understanding of the product. Shipping was very fast and I received a good, working item. I tested it in my house using the plug and was very satisfied with its performance. I got it for a paint booth at home and I'm sure I will have no problems tossing fumes out. I'm mouthing it today and it looks to be a very easy install. All in all if you know what you're looking for, these are the fans to order. I will definitely be ordering from Global again.
  • Reviewer: Anonymous

    Date: January 15, 2014

    very nice
    Your review:
    Purchased fan to clear smoke out of 24x24 garage it works very well very happy. Shipping had a little to be desired cost and time but they pulled threw. Fan is built pretty well
  • Reviewer: Anonymous

    Date: November 26, 2013

    Great exhaust fan!!
    Your review:
    I have a wood working shop. The fan is great for keeping the air fresh or extracting paint fumes when I'm spraying. The only down side is when the static pressure is 0 the fan seems to struggle. However very pleased with the job it's doing in my shop! JBP woodworks
  • Reviewer: Anonymous

    Date: October 03, 2013

    J&D ES shutter fan
    Your review:
    Worked exactly as expected, packaged well and delivered in a timely manner. Very satisfied.
Product Q & A

There are 1 questions and 1 answer for this product.

  • What accessories are available? I want automatic temperature activation.

    Question Asked By: Jim, July 10, 2015

    Answer This Question

    Question Answered By:

    • Product Expert, July 10, 2015

      "Then you would use a thermostat, you can set a temperature for the area to stay at using the fan. "
