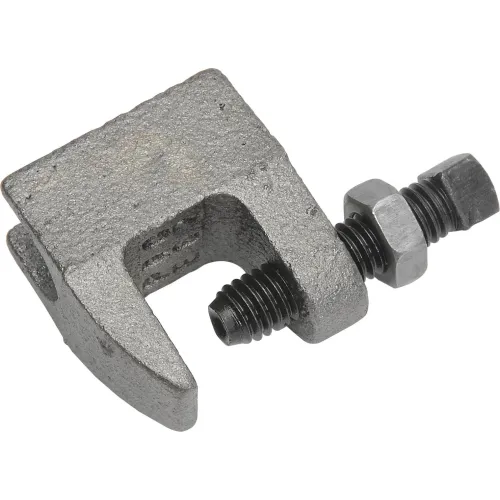

JR TOP BEAM CLAMP 3/8"
JUNIOR TOP BEAM CLAMP - Designed to attach hanger rod to the top flange of a beam or bar joist where flange thickness does not exceed 5/8 of an inch.
JUNIOR TOP BEAM CLAMP - Designed to attach hanger rod to the top flange of a beam or bar joist where flange thickness does not exceed 5/8 of an inch.

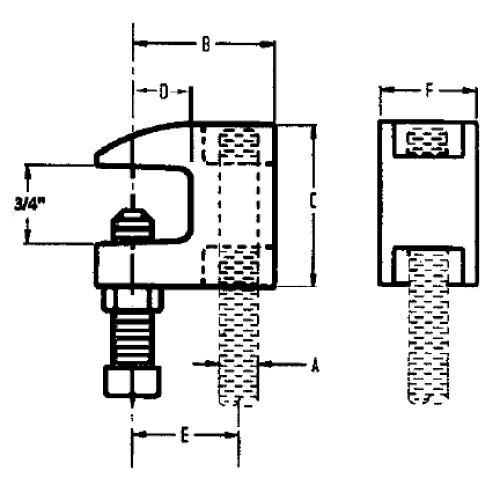

- SET SCREW 3/8 - 16
- SIZE 3/8 - 16
- DIMENSION C 1-1/2
- DIMENSION E 1
- DIMENSION D 1/2
- DIMENSION B 1-5/16
- MAX REC LOAD LBS. 350
- DIMENSION F 7/8
- MAX PIPE SIZE 4
- WEIGHT LBS 0.32
- CONSTRUCTION Ductile iron body
Customer Review
Product Q & A
There are no questions for this product.
Jr Top Beam Clamp 3/8" - Pkg Qty 100
$1.49
