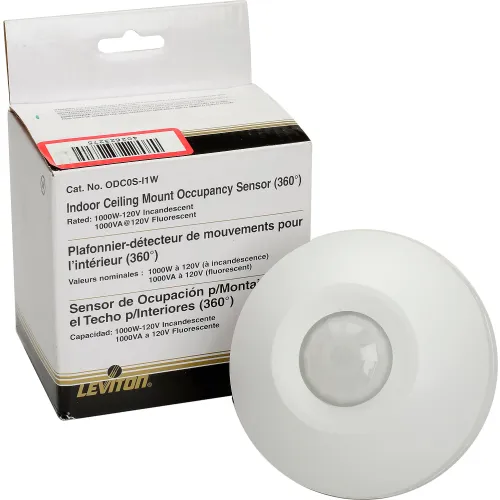

Leviton ODC0S-I1W Ceiling Mount Self-Contained Occupancy Sensor, 120VAC, White

All-digital dual technology sensor - ultrasonic and passive infrared (PIR), Non-volatile memory for sensor settings, IntelliDAPT® self-adaptive technology-no manual adjustment required, 2000 square foot coverage area, Rugged, high-impact injection molded off-white plastic casing, Recommended mounting height 8 to 12 feet, Line voltage 100-277VAC; 50/60 Hz, Operating temperature: 32° to 104°F (0° to 40°C)

All-digital passive infrared (PIR) sensor, single relay, IntelliDAPT® self-adaptive technology-no manual adjustment required, 1000 square foot coverage area, High-impact injection molded white plastic casing, Mounts to single-gang NEMA-style switch box, decorator wall plate sold separately, Line voltage 120/277VAC; 50/60 Hz, Operating temperature: 32° to 104°F (0° to 40°C)

Sensor module and lens assembly - high impact, injection-molded plastic, Mounts directly to fixture or j-box via (2) 1.25" (31.75mm) stainless steel screws and locking nuts, Low voltage 24VDC, Multiple daylight harvesting modes - downward facing only, Single/Dual motion sensor timer modes, Lens sold separately - low or high mount, indoor/outdoor, Operating temperature: -40° to 149°F (-40° to 65°C), Applications include gymnasiums, cold storage, garages, parking lots, manufacturing floors, site/area, warehouses

Levitons ODS10, Decora wall switch passive infrared (PIR) occupancy sensor is used to provide automatic lighting control for energy savings and convenience in a variety of commercial applications, including: small offices, storage areas, copier rooms, and closests. The ODS10-ID can be used for 120V or 277VAC incandescent, low-voltage and fluorescent lighting with either electronic or magnetic ballasts. Delayed-OFF time settings: 10, 20 and 30 minutes with 30-second test mode. Photocell with ambient light override prevents these devices from switching lights ON when there is ample natural ...

Basic Operation: Whether factory or field installed, new installation or retrofit, Leviton fixture mounted sensors provide fast, easy installation and immediate energy savings by automatically activating lighting only during periods of occupancy. Reliable passive infrared (PIR) technology detects occupancy, and the variable time delay-up to 30 minutes-is user accessible without power, tools or disassembly, and allows the ideal setting based on application needs. Included with the sensor are lenses for high-bay and low-bay, allowing one unit to cover a variety of applications. The ...
