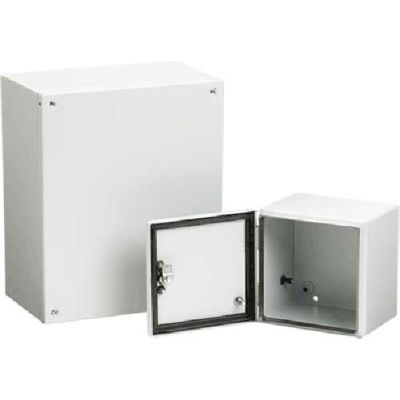

Hoffman LHC201512EMC INLINE™ Screw Cover EMC Encl, Type 1, 200x150x120mm
INLINE™ EMC Enclosures provide style, functionality and EMC protection. The flush body-to-door design can be secured by either screws or quarter-turn latches, making these enclosures an excellent choice for applications requiring an aesthetic appearance.
Features:
INLINE™ EMC Enclosures provide style, functionality and EMC protection. The flush body-to-door design can be secured by either screws or quarter-turn latches, making these enclosures an excellent choice for applications requiring an aesthetic appearance.
Features:
- 16 gauge (1.4-mm) steel
- Seams continuously welded and ground smooth
- External formed body flange
- Large perimeter body opening
- Fastening holes in back of body for direct mounting or optional external mounting brackets
- Bonding provision (M6) on cover; grounding stud (M6) on body
- Metalized non-woven fabric EMI/RFI material covering UL94HP-rated urethane foam gasket
- Plated interior surfaces for gasket contact areas and conduit entries
- Furnished hardware kit consists of panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
- Installation instructions
- Shielding effectiveness greater than 50 dB at 1 GHz INLINE EMC Screw-Cover Enclosures
- Captivated cover screws with sealing bushings
- Integral gasket compression stops INLINE EMC Hinged-Door Enclosures
- 180-degree door opening
- Removable solid door with two barrel hinges
- Self-grounding quarter-turn latch
Weights & Dimensions
- A x B x C 7.87 x 5.91 x 4.72 in
- Mounting G x H 7.17 x 3.35 in
- Panel Size (D x E) 7.13 x 5.16 in
Product Details
- Steel Panel LP2015
- Type 1
- Brand Hoffman
- Description Screw Cover Emc Enclosures, Type 4
- Material Steel
- Conductive Steel Panel LP2015G
- Manufacturers Part Number LHC201512EMC
- Color Family Gray
Customer Review
Product Q & A
There are no questions for this product.

Hoffman LHC201512EMC INLINE™ Screw Cover EMC Encl, Type 1, 200x150x120mm
$412.95
