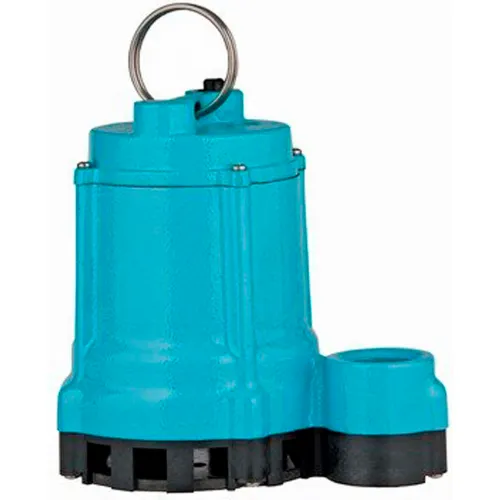

Little Giant® 6EC Series Sump Pump - 10' Power Cord
Little Giant 6EC Series pumps feature 1/3 HP Permanent Split Capacitor (PSC) motors providing lower current draw, energy efficiency, improved performance and cooler-running for durability. Built on the industry's best 6E platform, the 1/3 hp 6EC series consumes only 6.0 amps while producing 50 gpm @ 5 ft. of head and reaching a maximum shut off of 22 ft. The new unit also includes a stainless steel plate on the volute as a debris filter, creating lower intake velocities and pump stability.
Features
Click for Spec Sheet
Little Giant 6EC Series pumps feature 1/3 HP Permanent Split Capacitor (PSC) motors providing lower current draw, energy efficiency, improved performance and cooler-running for durability. Built on the industry's best 6E platform, the 1/3 hp 6EC series consumes only 6.0 amps while producing 50 gpm @ 5 ft. of head and reaching a maximum shut off of 22 ft. The new unit also includes a stainless steel plate on the volute as a debris filter, creating lower intake velocities and pump stability.
Features
- 1/3 HP Permanent Split Capacitor (PSC) motor with thermal overload protection
- Energy saving low amp draw
- Cooler running motor which extends pump life
- Epoxy coated cast iron motor housing
- Vortex impeller
- Solids handling up to 1/2 inch diameter
- Available in manual or automatic operation with two switch options; integral snap action float or piggyback mechanical float
- On Level: 7" - 10"
- Off Level: 2" - 5"
- 2 year warranty
Weights & Dimensions
- Discharge Connection Size 1-1/2 in
- Width 8-1/2 in
- Max Diameter Solids 1/2 in
- Length 8-3/4 in
- Cord Length 10 ft
- Suction/Draw Head 28 ft
- Height 11-1/8 in
- Weight 27 lbs
Product Details
- Shaft Seal Material Carbon/Ceramic, Nitrile
- Impeller Material Nylon
- Discharge Connection Type FNPT
- Voltage 115 V
- Switch Type Manual
- Horsepower 1/3 HP
- Amperage 5 A
- Type Submersible Sump & Light Effluent Pump
- Gallons per Minute 53 gal/min
- Temperature of Liquid Pumped 140
- Brand Little Giant
- Material Cast Iron
- Manufacturers Part Number 506801
