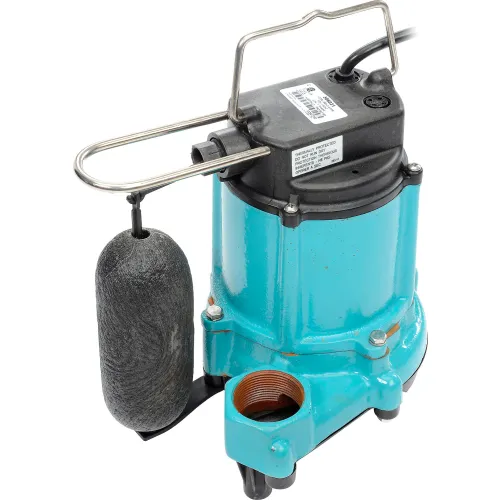

Little Giant® 6EN Series Sump Pump - 20' Power Cord & Float Switch
Little Giant 6EN Series pumps feature 1/3 HP Permanent Split Capacitor (PSC) motors providing lower current draw, energy efficiency, improved performance and cooler-running for durability. Built on the industry's best 6E platform, the 1/3 hp 6EN series consumes only 6.0 amps while producing 50 gpm @ 5 ft. of head and reaching a maximum shut off of 22 ft. The new unit also includes a stainless steel plate on the volute as a debris filter, creating lower intake velocities and pump stability.
Features
Click for Spec Sheet
Little Giant 6EN Series pumps feature 1/3 HP Permanent Split Capacitor (PSC) motors providing lower current draw, energy efficiency, improved performance and cooler-running for durability. Built on the industry's best 6E platform, the 1/3 hp 6EN series consumes only 6.0 amps while producing 50 gpm @ 5 ft. of head and reaching a maximum shut off of 22 ft. The new unit also includes a stainless steel plate on the volute as a debris filter, creating lower intake velocities and pump stability.
Features
- 1/3 HP Permanent Split Capacitor (PSC) motor with thermal overload protection
- Energy saving low amp draw
- Cooler running motor which extends pump life
- Epoxy coated cast iron motor housing
- Vortex impeller
- Solids handling up to 1/2 inch diameter
- Available in manual or automatic operation with two switch options; integral snap action float or piggyback mechanical float
- On Level: 7" - 10"
- Off Level: 2" - 5"
- 2 year warranty
Product Details
- Impeller Material Nylon Vortex
- Discharge Connection Type FNPT
- Switch Type Integral Snap Action Float
- Amperage 6 A
- Type Submersible Effluent Pump
- Temperature of Liquid Pumped 140
- Material Cast Iron
- Shaft Seal Material Steel
- Voltage 115 V
- Horsepower 1/3 HP
- Gallons per Minute 50 gal/min
- Brand Little Giant
- Manufacturers Part Number 506804
Weights & Dimensions
- Discharge Connection Size 1-1/2 in
- Width 8-5/16 in
- Length 10-9/16 in
- Cord Length 20 ft
- Suction/Draw Head 22 ft
- Height 10-3/16 in
- Switch On Height 7 - 10 in
- Max Diameter Solids 1/2 in
- Switch Off Height 2 - 5 in
- Weight 28 lbs
