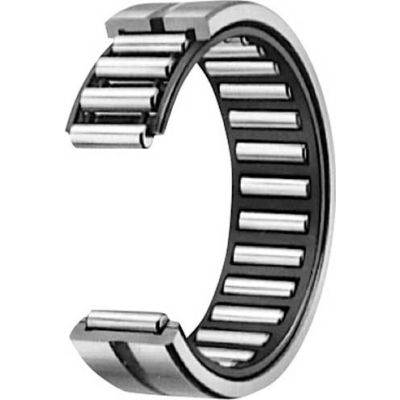

IKO Machined Type Needle Roller Bearing INCH BR122016, 3/4" Bore, 1-1/4" OD
IKO Machined Type Needle Roller Bearing consists of solid outer ring, rollers and retainer, without inner ring. They are with low sectional height, large load ratings and righty, and most of them come with and without seals. Prepacked lubricant is not provided except double sealed bearings (suffix UU). Proper lubricant must be applied when they are used. Machined Type needle roller bearings are generally used with shafts without inner rings. 0.2µmRa or less shaft surface finish and HRC 58 to 64 shaft hardness are recommended. When these requirements are not possible, use of IKO Inner Rings are recommended.
IKO Machined Type Needle Roller Bearing consists of solid outer ring, rollers and retainer, without inner ring. They are with low sectional height, large load ratings and righty, and most of them come with and without seals. Prepacked lubricant is not provided except double sealed bearings (suffix UU). Proper lubricant must be applied when they are used. Machined Type needle roller bearings are generally used with shafts without inner rings. 0.2µmRa or less shaft surface finish and HRC 58 to 64 shaft hardness are recommended. When these requirements are not possible, use of IKO Inner Rings are recommended.
Weights & Dimensions
- Outside Dimension Tolerance +0 / -0.013 mm
- Max Housing Shoulder Diameter 26.5
- Outside Dimension 31.750 (1-1/4) in
- Max Housing Corner Radius 1
- Width C +0 / -0.130
- Static Load 33100 N
- Bore (Fw) Mm/Inch 19.050 (3/4) in
Product Details
- Oil Hole & Groove Yes
- Dynamic Load Rating (N) 27600
- Oil Max Speed 20000 rpm
- Appropriate Inner Ring LRB81216
- Brand IKO
- Series BR
- Manufacturers Part Number BR122016
- Grease Max Speed 12000 rpm
Photo/Video Gallery
Customer Review
Product Q & A
There are no questions for this product.
IKO Machined Type Needle Roller Bearing INCH BR122016, 3/4" Bore, 1-1/4" OD
$17.0
