Method of Application:
- Turn back specified amount of rope from the thimble. Apply the first clip one base width from the dead end of the wire rope.
- Apply the next clip as near the loop as possible. Turn on the nuts but do not tighten.
- Space additional clips equally between the first two. Take up rope slack. Tighten all nuts evenly on all clips.
Additional quantities can be made to order, Must call to place order for different quantity.
Product Specifications
- CAPACITY LBS.--
- COLOR FINISHZinc Plated
- ASSEMBLYAssembled
- BRANDAdvantage
- CONSTRUCTIONZinc Plated Steel
- INNER WIDTH9/16"
- LIMITED WARRANTYMfg Defect
- MANUFACTURERS PART NUMBERMWRC125P6
- MATERIAL DIAMETER - CHAIN SIZE1/8"
- MIN. CLIPS REQUIRED3
- OVERALL LENGTH0.81"
- PACKAGE QUANTITY6
- PACKAGE TYPEBag

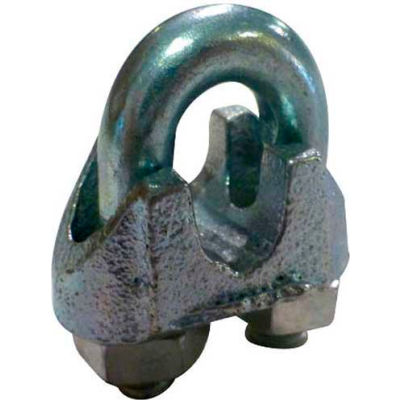

- STYLEMalleable Steel Wire Rope Clip
- TORQUE LBS. PER FOOT3
- TURN BACK LENGTH INCHES4-3/4
- WEIGHT LBS.0.241
