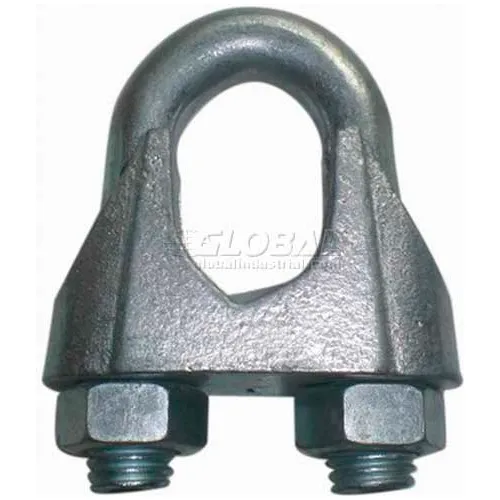

Elite Sales EGC14 1/4" Zinc Plated Wire Rope Clip - Pack of 50

Advantage Malleable Steel Zinc Plated Wire Rope Clip 3/8" Diameter Method of Application: Turn back specified amount of rope from the thimble. Apply the first clip one base width from the dead end of the wire rope. Apply the next clip as near the loop as possible. Turn on the nuts but do not tighten. Space additional clips equally between the first two. Take up rope slack. Tighten all nuts evenly on all clips. Additional quantities can be made to order, Must call to place order for different quantity.

Elite Sales Drop Forged Wire Rope Clip - 3/16" Our Drop Forged Wire Rope Clips are constructed of high quality hot dip galvanized, drop forged steel.

Eliminates the potential breaking off of the tail due to fatigue…tail is secured by base of clip and the wedge, left unharmed and available for reuse Eliminates the need for an extra piece of wire rope Dead end of wire rope is secured to wedge, which eliminates loss or "punch out" of the wedge Basket is cast steel and magnetic particle inspected Pin diameter and jaw opening allows wedge and socket to be used in conjunction with closed swage and spelter sockets 80% efficiency rating based on catalog strength of XXIP wire rope QUIC-CHECK markings are incorporated…the wire rope should pass ...

Each base has a Product Identification Code (PIC) for material traceability, the name CROSBY or CG, and a size forged into it. Based on the catalog breaking strength of wire rope, Crosby wire rope clips have an efficiency rating of 80% for 1/8" - 7/8" sizes, and 90% for sizes 1" through 3-1/2". Entire Clip-Galvanized to resist corrosive and rusting action. Sizes 1/8" through 2-1/2" and 3" have forged bases. All Clips are individually bagged or tagged with proper application instructions and warning information. Clip sizes up through 1-1/2" have rolled threads. Meets or exceeds all ...

Used to reinforce eyes of cable assemblies to reduce abrasion. Method of Application: Turn back specified amount of rope from the thimble. Apply the first clip one base width from the dead end of the wire rope. Apply the next clip as near the logo as possible. Turn on the nuts but do not tighten. Space additional clips equally between the first two. Take up rope slack. Tighten all nuts evenly on all clips.
