Ashland Conveyor 3' Ball Transfer Conveyor Table 30398 - 10" BF - 4" Ball Centers

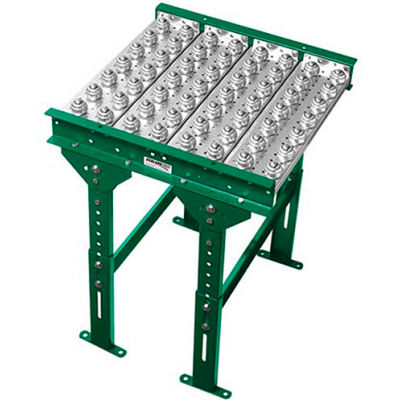

Shown With Optional Floor Support

Ashland Conveyor 3' Ball Transfer Conveyor Table 30398 - 10" BF - 4" Ball Centers

Item #: WBB1874805

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

  • SELECT
  • 3
  • 4

4

Price: $247.95

Save $12.40 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Ashland Conveyor 3' Ball Transfer Conveyor Table with 4" Center - 75 Lb. Cap.

Ball transfer units are used where product must change direction or at an intersection of two conveyors. Table assemblies are designed to match-up with 1.9" diameter roller conveyor frames. Ball capacity of 75 lbs. each.

Product Specifications

  • LENGTH INCHES36
  • LENGTH FEET3
  • WIDTH INCHES12-3/4
  • HEIGHT INCHES3-13/16
  • CAPACITY120 Lbs./Ft. on 10' Support Centers; 600 Lbs./Ft. On 5' Support Centers
  • CAPACITY LBS75
  • COLOR FINISHPowder Coated Ashland Green
  • ASSEMBLYAssembled
  • BALL CENTER INCHES4
  • BALL DIAMETER INCHES1
  • BETWEEN FRAME WIDTH INCHES10
  • BOLT SPACING INCHES1-1/2
  • BRANDAshland Conveyor Products
  • COMPATIBLE WITH CONVEYOR FRAME SIZEAshland 3-1/2" x 1-3/8" Roller Conveyor
  • CONSTRUCTION3-1/2" x 1-3/8" 11 Ga. Painted Steel w/6" x 1" x 12 Ga. Galvanized Channel Bolte
  • CONVEYOR SECTION3 ft. Straight
  • DESCRIPTIONBall Transfer Table
  • FRAME TYPE11 Ga. Painted Steel w/12 Ga. Galvanized Steel Inserts
  • LIMITED WARRANTY1 Year
  • MANUFACTURERS PART NUMBER30398
  • MOUNTING BOLT HOLE DIAMETER INCHESø 7/16 x 5/8
  • PACKAGE QUANTITY1
  • REFERENCE #BTIT100304
  • STYLEBall Transfer Conveyor Table
  • WEIGHT LBS60
Customer Review

Not Yet Reviewed

Product Q & A

There are 1 questions and 1 answer for this product.

  • Do the roller balls extend above the side frame so that items can extend beyond the side rails and still roll properly?

    Question Asked By: Kevin, May 29, 2015

    Answer This Question

    Question Answered By:

    • Product Expert, May 29, 2015

      "The ball transfers extend above the channel frame by 5/16” thereby allowing items to extend beyond the rails and still roll properly. "
