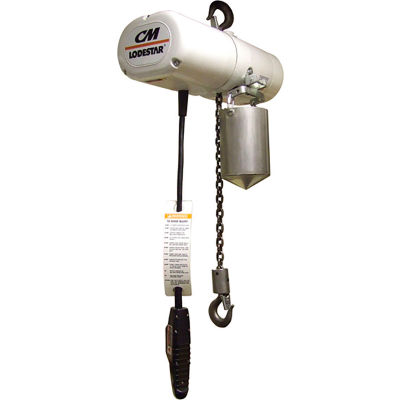

CM Lodestar 1 Ton, Food Grade Electric Chain Hoist, 15' Lift, 8 FPM, 230/460V

CM Lodestar 1 Ton, Food Grade Electric Chain Hoist, 15' Lift, 8 FPM, 230/460V

Item #: WBB1299679

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

  • SELECT
  • 230/460
  • 115

230/460

$6,801.00 up to 21% OFF

Price: $5,371.00

$895.17/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Global Industrial™ Plastic Shipping/Storage Tote W/ Attached Lid, 21-7/8"x15-1/4"x12-7/8",Gray

Global Industrial™ Plastic Shipping/Storage Tote W/ Attached Lid, 21-7/8"x15-1/4"x12-7/8",Gray

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

CM Lodestar Food Grade Electric Chain Hoist, 1 Ton, 15 Ft. Lift, 230/460V

The benefits of superior design:
  • Heavy Duty DC Brake is designed for a long service life. Brake location allows for quick access and easy inspection.
  • Lifetime grease-lubricated Gear Box means no oil change out is required. Precision gears provide better wear and longer life.
  • Clutch located outside the Gear Box allows for easy access which eliminates the need for complete disassembly and reduces downtime.
  • Easy access to the Clutch, Motor, Electrical Control Panel and Brake Assembly.
  • Lifetime grease-lubricated Gear Box and helical gearing ensures efficient operation. Heavy duty rated motors. Hoist workmanship backed by a lifetime warranty.
  • 80% reduction in sound pressure as compared to the classic Lodestar.
  • Clutch is located outside the load path which prevents slipping of the load in an overload condition when brake is not powered.
  • 5 Pocket Lift Wheel provides better chain and lift wheel engagement for smoother lifting and reduced vibration - which equates to less wear and a longer chain life.
  • Zinc plating to protect chain from environmental conditions.
  • With finger-safe wiring and plug and play connectors, the Control Panel allows for quick voltage change, access to terminal strips and simple fuse installation.
  • Lodestar exceeds H4 requirements, engineered for high duty cycles and the toughest applications.
  • Lifetime grease-lubricated Gear Box means no changing and disposing of hazardous oil.
  • Documented RoHS compliance.
  • Shipped in boxes made of recycled material.
  • Rigid hook suspension standard on every Lodestar.
  • Lifetime Warranty.
  • Metric rated.
  • CSA/US National Recognized Testing Laboratory (NRTL).
  • Made in the USA.
  • Clean Room Hoists feature stainless steel chain, stainless steel hooks, FDA-approved white epoxy paint, and food-grade lubricants
  • Ideal for use in clean room, wipe-down or wash-down environments
  • Stainless steel chain container sold separately (Model 2450SS)
    OPTIONAL FEATURES:
  • Double DC Brake - Two independent acting DC Brakes for redundant braking. Field Installation Kit available.
  • AC Electrical Brake.
  • Variable speed drive (VFD) or traditional 2 speeds available.
  • Primary and secondary transformer fusing.
  • Rotatable limit switch - Designed for quick reset of limit position.
  • Black phosphate or stainless steel load chain.
  • Metal and stainless steel chain containers.


Product Specifications

  • LENGTH INCHES21-1/4
  • WIDTH INCHES8-11/16
  • HEIGHT INCHES6-1/16
  • CAPACITY LBS2000
  • COLOR FINISHWhite
  • ASSEMBLYAssembled
  • BRANDCM
  • CONSTRUCTIONAluminum
  • HEAD ROOM INCHES13-15/16
  • HORSEPOWER1/2
  • LIFT FEET15
  • LIFT SPEED FEET PER MINUTE8
  • LIMITED WARRANTYLifetime
  • MANUFACTURERS PART NUMBER2765NHCR15
  • REEVING2
  • SERIESLodestar
  • SUSPENSIONHook
  • TYPEElectric Chain Hoist, Food Grade
  • VOLTAGE230/460
  • WEIGHT LBS91
  • UPC043927366248
  • PACKAGE QUANTITY1
