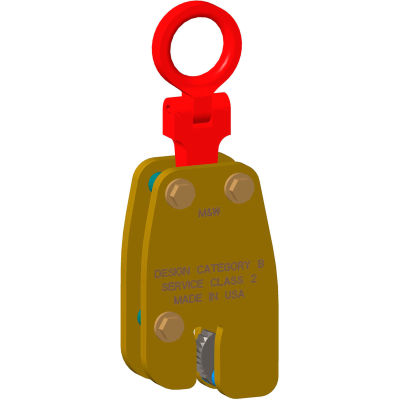

M & W Vertical Plate Clamps Lifting Attachment 21916 4400 Lb. Capacity

M & W Vertical Plate Clamps Lifting Attachment 21916 4400 Lb. Capacity

Item #: WBB2291968

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,065.00

$177.50/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

M & W Vertical Plate Clamps Lifting Attachment 21916 4400 Lb. Capacity

Features:
  • Non-welded Construction.
  • No Minimum Load
  • Camming Stationary Jaw Automatically Returns to Preload Position
  • Self Locking Jaw Closed Mechanism
  • Self Locking Jaw Open Mechanism
  • 0 – 180 Degree Turning Permissible
  • Clamp can be mounted to the work piece without the need for the operator to put hands in the fall path of the work piece
  • Designed with a 5 –1 Design Factor Criteria
  • ASME B30.20 Operation Compliant
  • ASME B30.BTH -1 Design Compliant
  • Working Load Limit (WLL) Clearly and Legibly Marked on the Clamp
  • Serial Number Clearly and Legibly Marked on the Clamp
  • Materials of Manufacture Remain Stable Under Load
  • Clamps Can Be Used to Lift Materials with a Surface Hardness of up to 400 Brinell.
  • Clamps must be used in accordance with the Instructions in the Operator Manual.
  • Operating temperature -40 to 170° Fahrenheit.

Product Specifications

  • CAPACITY LBS4400
  • COLOR FINISHYellow Dichromate
  • APPROVAL/REGULATIONSASMEB30.20, ASME BTH-1
  • ASSEMBLYAssembled
  • BAIL OPENING INCHES2.38
  • BRANDM&W
  • CONSTRUCTIONSteel
  • DIMENSION A INCHES1 - 2.0
  • DIMENSION B INCHES2.41
  • DIMENSION C INCHES9.37
  • DIMENSION D INCHES18.3
  • DIMENSION E INCHES2.38
  • DIMENSION F INCHES8
  • DIMENSION G INCHES.5
  • DIMENSION H INCHES2.21
  • DIMENSION J INCHES.75
  • LIMITED WARRANTY30 Days
  • MANUFACTURERS PART NUMBER21916
  • MAX. PLATE THICKNESS INCHES2
  • THROAT DEPTH INCHES2.41
  • TYPEPlate Clamp
  • WEIGHT LBS24
  • PACKAGE QUANTITY1
  • STYLEHinged Lug
  • DIMENSION K INCHES3.29
