Price: $1,332.00
Customers Also Viewed
Helps to Reduce Worker Strain and Risk of Injury from Lifting, Bending and Stretching.
This ergonomic tool is ideal for building or unpacking pallet loads. A combination of heavy-duty springs and shock absorbing dampener maintain a constant working height without overshoot or spring bounce, lowering and raising the carousel as packages are removed or added. No power or air supply is required, and it is virtually maintenance free! The 43-5/8" diameter turntable features low-friction bearings for smooth operation. Full 360° access allows for nearside loading without reaching, as the operator can step closer to the unit's platform to add or remove pallet loads. Wide, free-standing base features 36-5/8"L x 6"W x 2"H fork pockets for easy relocation by fork lift. Strong tubular steel frame with durable powder-coat finish for long life. 1 Year Limited Warranty.
Product Specifications
- LENGTH INCHES43-5/8
- WIDTH INCHES43-5/8
- COLOR FINISHBlue & Yellow
- ASSEMBLYAssembled
- BRANDGlobal Industrial
- CAROUSEL OUTSIDE DIAMETER INCHES43-5/8
- CONSTRUCTIONSteel
- LIMITED WARRANTY1 Year
- LOWERED HEIGHT INCHES9-1/2
- MAXIMUM CAPACITY LBS.4500
- MINIMUM CAPACITY LBS.400
- OPERATIONSpring Lift
- RAISED HEIGHT INCHES27-3/4
- REFERENCE #PP360-R4
- TYPESpring-Actuated Pallet Carousel Skid Positioner
- WEIGHT LBS375
-

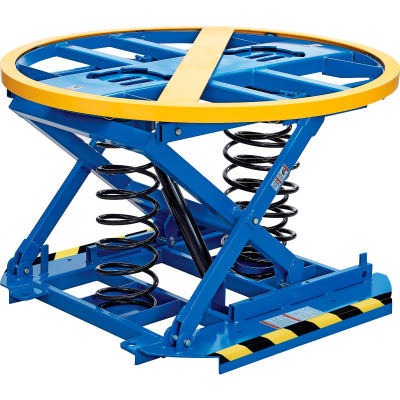

Global Industrial Spring Actuated Pallet Carousel Skid Positioner
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Most Recent Reviews
- Most Recent Reviews
- Highest Rated Reviews
- Lowest Rated Reviews
-
Reviewer: ALEX
Date: February 15, 2021
-
Reviewer: COREY
Date: December 03, 2020
Your review:
great lift and easy assembly -
Reviewer: TOM
Date: October 07, 2020
Your review:
We were looking for a simple cost effective method to ease operator stress during manual unloading of pallets of paper bags. The unit fit the need. Operators had it unpacked and in service less than an hour after arrival. -
Reviewer: John
Date: September 30, 2020
Your review:
Assembled easily, and works great! -
Reviewer: BROCK
Date: June 30, 2020
Your review:
Great value and a very useful tool in our small warehouse. Its narrow enough at the base that our Pallet Stacker can get around it. The item comes with three springs which (either individually or combined) can handle a range of loads up to 4500 lbs. -
Reviewer: PAULA
Date: June 09, 2020
Your review:
Wonderful product! -
Reviewer: Anonymous
Date: July 18, 2019
Your review:
This works great! It's a safety item for us. It helps reduce back pain less bending when lifting 25-30 lb cartons on to a pallet. -
Reviewer: Anonymous
Date: April 30, 2019
Your review:
After getting over the initial change factor, team members really started to like this tool. It certainly helps eliminate a lot of bending and twisting associated with stacking pallets. -
Reviewer: Anonymous
Date: March 23, 2018
Your review:
This pallet lift is awesome -
Reviewer: Anonymous
Date: March 23, 2018
Your review:
Worked great for our needs and was easy to set up.
There are 10 questions and 12 answers for this product.
-
To prevent pinching points, do you have skirt for this device? If you do can I get information on it.
Question Asked By: Jose, February 05, 2021
Answer This Question
Question Answered By:
-
Product Expert, March 22, 2019
Hello Jose, unfortunately this unit does not offer a skirt option. Thank you for your question.
-
-
Can the positioner be moved with a manual pallet Jack?
Question Asked By: Julian, June 30, 2020
Answer This Question
Question Answered By:
-
Product Expert, July 01, 2020
Hello, yes this unit does have fork pockets so it is suitable for moving it with a pallet jack. It is also recommended to use a long fork pallet jack for moving it. Thank you for your interest in our product.
-
-
Does this really come fully assembled as the website states?
Question Asked By: Jennifer, May 27, 2020
Answer This Question
Question Answered By:
-
Product Expert, May 28, 2020
Hello Jennifer, yes the unit is indeed fully assembled. Thank you for your question.
-
-
Can this lift table be used for continual use of unloading parts? A heavy skid of small, heavy boxes will be put on the pallet carousel. As needed, a box of parts, at waist height, will be removed and brought to an assembly station. When emptied, a new box will be taken off the pallet carousel and taken back to the assembly station. The pallet carousel will see a continually, slowly, decreasing weight until a new pallet is put on. Will the springs hold up in a continually loaded state?
Question Asked By: Mike, February 27, 2020
Answer This Question
Question Answered By:
-
Product Expert, March 03, 2020
Hello Michael, we apologize but this unit is not suitable to keep at a locked height as the unit is loaded or unloaded. Since the surface is spring loaded, it is meant to decrease in height as a load is put on and increase as it is unloaded. If a work surface is needed that will stay at a locked height while loading and unloading - we can recommend our Lift Tables or Workbenches. Please type in the keywords in the global search bar at globalinsutrial.com for more product information.
-
-
Can the positioner be used without the carousel, so the pallet is always in a fixed position?
Question Asked By: DAVE, February 21, 2019
Answer This Question
Question Answered By:
-
Product Expert, February 21, 2019
Hello Dave. We apologize but unfortunately, the Rotating Ring cannot be locked into a stationary position. Thank you for your question.
-
-
Does the 400 lbs minimum mean it will take 400 lbs with that spring to fully lower the table?
Question Asked By: Erich, November 26, 2018
Answer This Question
Question Answered By:
-
Product Expert, November 26, 2018
Hello Erich. The 400 lb minimum stands for the lowest amount of weight that the spring will fully raise / fully compress to with the corresponding spring.
-
-
How is this product raised and lowered? Can it be lowered and raised with product on the equipment?
Question Asked By: Timothy, May 16, 2017
Answer This Question
Question Answered By:
-
anonymous
Hello Timothy, This model is spring powered and lowered when weight is put on to the model and raised when the weight is taken off. Thank you for your interest in our product!
-
-
Can this be purchased with a solid top?
Question Asked By: Ryan, January 18, 2017
Answer This Question
Question Answered By:
-
anonymous
Hello Ryan, Unfortunately this can not be purchased with a solid top. Thank you for your interest in our product!
-
-
Can I get any repair parts for this item (WY988295) I need the replacement rollers and shafts for the lower section.
Question Asked By: Brad, July 13, 2016
Answer This Question
Question Answered By:
-
Product Expert, July 13, 2016
Yes, please call our Customer Service team at 1-800-645-2986 for assistance.
-
Product Expert, July 13, 2016
Yes, please call our Customer Service team at 1-800-645-2986 for assistance.
-
Product Expert, July 13, 2016
Yes, please call our Customer Service team at 1-800-645-2986 for assistance.
-
-
We have a need for a pallet positioner that will accommodate a 2500# load when the pallet is full. my concern with this model is that it will not be fully retracted as it handles up to 4500#. At what height will this be with 2500# of weight on it?
Question Asked By: Mario, July 13, 2016
Answer This Question
Question Answered By:
-
anonymous
Hello, This model maintains a constant working height of 27 3/4" at any weight load. Thank you for your interest in our product.
-
This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
