Ballymore Max Double High Scissor Lift Table, Foot Operated, 2000 lb. Capacity, 84" x 26", 115V

In applications where loads are very long a double long scissor design is required. Extreme overhang on a single scissor table can damage the table and create an unsafe condition. Edge, side and maximum load capacities are increased by adding an additional set of scissor arms to support the platform. The Max-Double Long is a two scissor lift system built into one frame assembly. Tops range from 8 to 16 feet with other custom lengths and widths available. Features: Internally mounted 1.5 HP 115/230V-I-60 or 230/460-3-60 intermittent duty TENV super torque motor 115V operating control ...

The Max Heavy Duty lift table doesn't have just a few more thousand pound capacity than the standard Max-Lift, it was completely reengineered from the ground up to create the most rugged lift possible for extra heavy duty industrial applications. The base frame and platform are taller as a result of the larger rollers used. The upper rollers feature a roller bridge plate for added structural stability. Thicker steel is used in both the platform top as well as the uniquely shaped scissor arms. 5"" bore double clevis mounted cylinders keep the hydraulic pressure low enabling internal ...

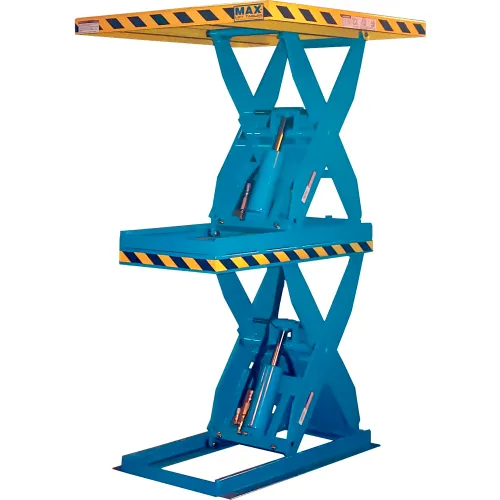

The Max Double High Lift Table offers a solution to those material handling applications with high lift requirements. Additional applications are those in which the platform size must be smaller than what is offered on a single pair of scissor arms with a specific amount of vertical travel. Unlike other tables that simply connect one set of scissor arms to another, The Double High Max-Lift stacks one entire table on top of another. The intermediate platform frame keeps the scissor properly aligned for long life and reliability. This design also offers minimal deflection when dealing with ...

The best value in lift tables with unparalleled features. Reduces awkward bending and lifting since the work load is always at the correct level. The possibility of back injuries is also reduced and productivity is increased. The MAX-Lift is a superior scissors lift table currently offered in the 2,000 - 6,000 lb. capacity range with a vertical travel range from 24" to 60" and can satisfy most applications. The MAX-Lift Scissor Lift Table has a vertical travel range from 24" to 60" and can satisfy most applications. The MAX-Lift Specifications coupled with its unique Features raise the ...
