Meiji Techno BD-M-LED Pole Stand

Meiji Techno BD-M-LED Pole Stand

BD-M-LED is a research grade Brightfield /Darkfield Pole type stand for the EM Series stereo microscopes. It has a large stable work surface and a rotatable lens/mirror system which provides transmitted LED intensity illumination and a sliding mirror provides tilt, as well as front to back movement which allows the user to vary illumination from Brightfield LED to Darkfield LED illumination at an appropriate angle. It can be an effective tool used for research to view living bacteria, or at low magnifications to view tissues, cells or embryo transfer where in oblique transmitted illumination is critical to the experiment. Marine biologists continue to use darkfield transmitted illumination at low powers to observe and record data about fresh and salt water organisms such as algae as well as striae in transparent material and plankton in aqueous solution. Equipped with two stage clips, 94.5 mm glass stage plate and is equipped with an automatic voltage (100v to 240v) sensing power supply and a 20mm vertical post. (Requires F focus block or any 20mm focus block.)

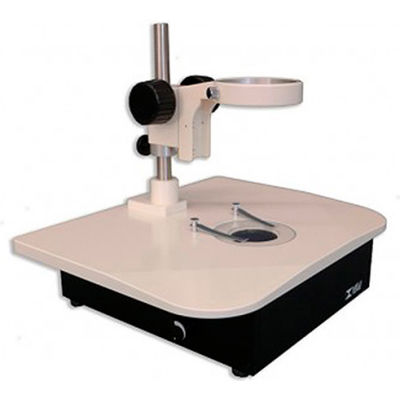

NOTE: F holder (shown in the photo) is not included in the system. Each product must be purchased separately.

Features:

• Pole type stand with F focusing slide block
• rotatable and sliding Y-axis mirror in base with locking tension ring and "pseudo" LED transmitted light darkfield illumination
• variable intensity controls
• clear glass stage plate
• two stage clips
