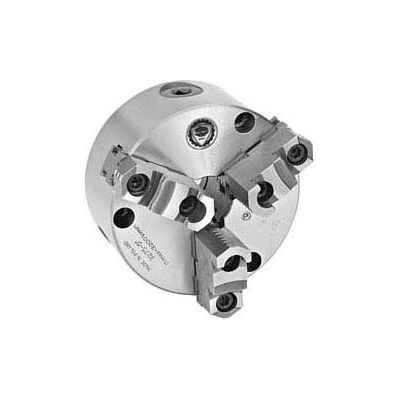

Bison 3-Jaw (2 Piece) Scroll Chuck Semi-Steel Body, Front Mount, 8" Plain Back

Bison 3-Jaw (2 Piece) Scroll Chuck Semi-Steel Body, Front Mount, 8" Plain Back

Item #: WBB607850

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

  • SELECT
  • 6"
  • 8"
  • 12"
  • 25"
  • 10"
  • 4"
  • 5"
  • 3"
  • 2"
  • 20"
  • 16"
  • 32"

8"

  • SELECT
  • Front Mount Plain Back
  • Camlock D1-6
  • Plain Back
  • Taper A2-6
  • Camlock D1-8
  • Quick Clamping Plain Back
  • Fine Adjustable Plain Back
  • Camlock D1-4
  • Camlock D1-11
  • Taper A1-6
  • Threaded Mount 1-1/2"-8
  • Taper A2-11
  • Long Taper L1
  • Long Taper L00
  • Threaded Mount 2-1/4"-8

Front Mount Plain Back

$733.37 up to 8% OFF

Price: $674.00

$112.33 / month suggested monthly payments with 6 mo. special financing on the purchase of $674.00 or save 5% on purchase.

Quantity

Customers Also Viewed

3-Jaw (2pieces) Scroll Chuck, Front Mount, 8"
  • High quality Cast Iron body
  • 2-piece reversible top hard jaws
  • Plain back

Product Specifications

  • DESCRIPTIONLathe Chuck
  • WEIGHT LBS32 Lbs
  • CLAMPING RANGE-d1 (MIN-MAX).157 - 3.54
  • CLAMPING RANGE-d2 (MIN-MAX)2.83 - 6.14
  • CLAMPING RANGE-d3 (MIN-MAX)5.24 - 7.87
  • CLAMPING RANGE-d4 (MIN-MAX)1.97 - 5.12
  • CLAMPING RANGE-d5 (MIN-MAX)4.13 - 7.48
  • DIMENSION C0.1575"
  • DIMENSION E (H7)6.2992"
  • DIMENSION F6.9291"
  • DIMENSION H2.953"
  • DIMENSION-h1.772"
  • CHUCK DIAMETER D8"
  • DIAMETER8"
  • MATERIALSemi-Steel
  • BRANDBison
  • STYLEFront Mount Plain Back
  • COUNTRY OF ORIGINImport
  • NUMBER OF JAWS3
  • SCREWS THREAD G3/8-16 x 3.15
  • TYPESelf-Centering
  • NUMBER OF SCREWS6
  • NUMBER OF PIECES2
  • MANUFACTURER'S PART NUMBER7-812-0800
  • SCREWS THREAD MM10
  • HOLE DIAMETER D2.1654"
