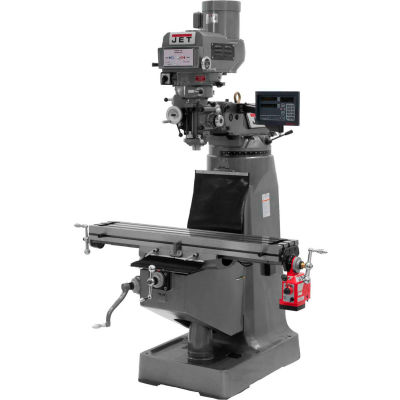

JTM-4VS-1 With Newall DP700 DRO
- Constructed using the Meehanite® casting process, JET Variable Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. Available in single or three phase power configurations, the JET JTM-4VS Series mills are backed by the industry leading two year full service and parts warranty
- Meehanite Castings
- Precision bored and honed milling head
- Large diameter quill is chromed
- High precision Class 7 spindle bearings
- Chrome plated motor shaft with lower bearing support
- Spindle head is internally cooled
- Heavy duty splined motor drive
- One piece quill pinion and shaft
- Three stage power downfeed with automatic stop
- Heavy duty spindle brake
- Locks on all movable surfaces
- Precision hardened and ground ways and table
- Adjustable gibs throughout
- Internal coolant tank built into casting base for use with coolant system (coolant pump not included)
- Tolerance test sheet included
- One shot lubrication system
- Way covers
- Draw bar
- Tool box with tools
Product Specifications
- NUMBER OF SPINDLE SPEEDSVariable
- RANGE OF SPINDLE SPEEDS (RPM)60 - 4200
- TABLE SIZE INCHES9 x 49
- BRANDJET®
- DRONewall DP700
- POWERFEED-
- QUILL DIAMETER (IN.)3-3/8
- NUMBER OF AXIS2
- HEAD MOVEMENT (DEG.)90 R & L, 45 F & B
- TABLE LONGITUDINAL TRAVEL (IN.)34
- COLLET CAPACITY1/8 - 7/8
- TABLE CROSS TRAVEL (IN.)12
- QUILL DOWN FEED RATES (IPR).0015 - .003 - .006
- MANUFACTURERS PART NUMBER692087
- DISTANCE SPINDLE TO COLUMN (MIN./IN.)4-1/2
- SPINDLE TRAVEL (IN.)5
- MOTOR PHASESingle
- DISTANCE SPINDLE TO COLUMN (MAX./IN.)19
- MOTOR HORSEPOWER2
- SPINDLE TAPER (IN X TPI)R-8
- MOTOR VOLTAGE115/230
- MAX DISTANCE SPINDLE TO TABLE (IN)17-1/2
