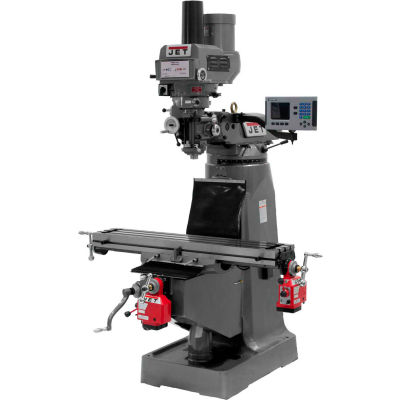

JTM-4VS Mill With ACU-RITE 200S DRO With X and Y-Axis Powerfeeds and Power Draw Bar

JTM-4VS Mill With ACU-RITE 200S DRO With X and Y-Axis Powerfeeds and Power Draw Bar

Item #: WBB1806158

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Frequently Purchased Together

  • 1/2" Dia., 1/2" Shank, 1" LOC, 3" OAL, 4 Flute Solid Carbide Ball Single End Mill, AlTiN

    $66.95

  • 1/2" Dia., 1/2" Shank, 2" LOC, 4" OAL, 4 Flute Solid Carbide Single End Mill, AlTiN

    $73.49

  • 3/4" Dia., 3/4" LOC, 3" OAL, 4 Flute Cobalt Single End Fine Roughing End Mill, TiCN

    $80.99

Original Price: $13,499.00

Promotional Price: $12,149.10

$2,024.85 / month suggested monthly payments with 6 mo. special financing on the purchase of $12,149.10 or save 5% on purchase.

Quantity

Customers Also Viewed

JTM-4VS Mill With ACU-RITE 200S DRO With X and Y-Axis Powerfeeds and Power Draw Bar

    Constructed using the Meehanite® casting process, JET Variable Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. Available in single or three phase power configurations, the JET JTM-4VS Series mills are backed by the industry leading two year full service and parts warranty

  • Meehanite Castings
  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High precision Class 7 spindle bearings
  • Chrome plated motor shaft with lower bearing support
  • Spindle head is internally cooled
  • Heavy duty splined motor drive
  • One piece quill pinion and shaft
  • Three stage power downfeed with automatic stop
  • Heavy duty spindle brake
  • Locks on all movable surfaces
  • Precision hardened and ground ways and table
  • Adjustable gibs throughout
  • Internal coolant tank built into casting base for use with coolant system (coolant pump not included)
  • Tolerance test sheet included
  • One shot lubrication system
  • Way covers
  • Draw bar
  • Tool box with tools


Product Specifications

  • NUMBER OF SPINDLE SPEEDSVariable
  • RANGE OF SPINDLE SPEEDS (RPM)60 - 4200
  • TABLE SIZE INCHES9 x 49
  • BRANDJET®
  • DROAcu-Rite 200S
  • POWERFEEDX & Y-Axis
  • QUILL DIAMETER (IN.)3-3/8
  • NUMBER OF AXIS2
  • HEAD MOVEMENT (DEG.)90 R & L, 45 F & B
  • TABLE LONGITUDINAL TRAVEL (IN.)34
  • COLLET CAPACITY1/8 - 7/8
  • TABLE CROSS TRAVEL (IN.)12
  • QUILL DOWN FEED RATES (IPR).0015 - .003 - .006
  • MANUFACTURERS PART NUMBER690230
  • DISTANCE SPINDLE TO COLUMN (MIN./IN.)4-1/2
  • SPINDLE TRAVEL (IN.)5
  • MOTOR PHASEThree
  • DISTANCE SPINDLE TO COLUMN (MAX./IN.)19
  • MOTOR HORSEPOWER3
  • SPINDLE TAPER (IN X TPI)R-8
  • MOTOR VOLTAGE230/460
  • POWER DRAW BARPneumatic
  • MAX DISTANCE SPINDLE TO TABLE (IN)17-1/2
