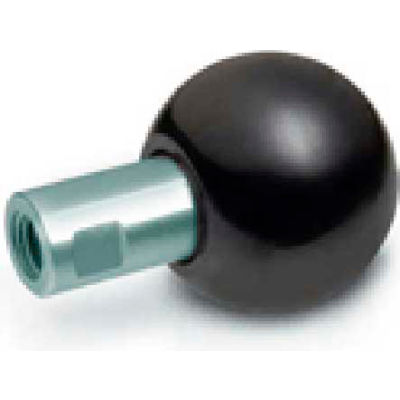

J.W. Winco GN319.2 Phenolic Revolving Ball Knob W/Long Shoulder Tapped 50mm Dia. 78mm L M12x1.75

J.W. Winco GN319.2 Phenolic Revolving Ball Knob W/Long Shoulder Tapped 50mm Dia. 78mm L M12x1.75

Item #: WBB1504642

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $13.50

Save $0.68 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

J.W. Winco GN319.2 Phenolic Revolving Ball Knob W/Long Shoulder Tapped 50mm Dia. 78mm L M12x1.75

GN 319.2 tapped shoulder type revolving ball knobs can be utilized instead of other revolving handles i.e. with handwheels. The tapped shoulder allows the revolving ball knob to be mounted from the underside via a screw or bolt, which can then be easily mounted to sheet metal in a variety of thicknesses, flat bar, or castings, to create a quick cranking or turning mechanism. Maximum heat resistance: 110°C (230°F).

Product Specifications

  • MATERIALPhenolic Plastic
  • BRANDJ.W. Winco
  • DESCRIPTIONRevolving Ball Knob w/ Long Shoulder
  • t MIN. MM16
  • t MIN. INCHES0.63
  • DIAMETER50
  • MANUFACTURERS PART NUMBER319.2-50-M12-B
  • d1 INCHES1.97
  • d1 MM50
  • TYPETapped
  • l3 INCHES1.22
  • l3 MM31
  • A/F INCHES0.67
  • A/F MM17
  • l2 INCHES3.07
  • d2 THREADM12 x 1.75
  • l2 MM78
  • SERIESGN319.2
  • d4 INCHES0.79
  • THREADM12 x 1.75
  • LENGTH78
  • d4 MM20
