Marathon Motors Metric Motor, E851, 143TTTN6505, 1 1/2HP, 3600RPM, 575V, 3PH, 143T FR, TENV

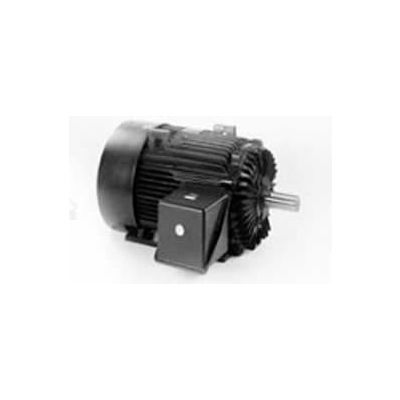

Actual product may differ from image shown

Marathon Motors Metric Motor, E851, 143TTTN6505, 1 1/2HP, 3600RPM, 575V, 3PH, 143T FR, TENV

Item #: WBB870422

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $412.95

Save $20.65 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Marathon Motors Metric Motor, E851, 143TTTN6505, 1 1/2HP, 3600RPM, 575V, 3PH, 143T FR, TENV

Marathon's extensive line of 575 Volts, General Purpose motors are available in Open Drip-proof and TEFC construction in three phase. Horsepower sizes available from stock range from 1/2 HP through 100 HP.

  • HORSEPOWER 1 1/2
  • ENCLOSURE TENV
  • FRAME 143T
  • MOUNTING Rigid
  • NAMEPLATE RPM 3600
  • PHASE 3
  • MOTOR RPM 60Hz 3600
  • VOLTAGE 575
  • DUTY Continuous
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • WEIGHT 61
  • UL Recognized Construction
  • CSA Y
  • RPM RANGE 3001-3600
  • ENCLOSURE TYPE Totally Enclosed
  • INVERTER SPEED RANGE Division 2 T2B
  • IP CODE 54
  • is_motor Yes
  • ORIENTATION Horizontal
  • MANUFACTURER PART # E851
  • BRAND Marathon Motors
  • STARTING TYPE Line or Inverter
  • OPPOSITE END BEARING SIZE 6203
  • DRIVE END BEARING SIZE 6205
  • ASSEMBLY F1 (F2 Modification Available)
  • NEMA DESIGN B
  • APPROVAL-CE N
  • KVA-CODE L
  • FL AMPS 1.6
  • INSULATION CLASS F
  • FL EFFICIENCY 0.865
  • BEARING-OPP-DRIVE-END 6203
  • BEARING-DRIVE-END 6205
  • 60 HERTZ kW 1.12
  • MODEL NUMBER 143TTTN6505
