Marathon Motors Metric Motor, R340A, 180MTFC6536, 25-18.5HP, 1800RPM, 230/460V, 3PH, 180M V FR, TEFC

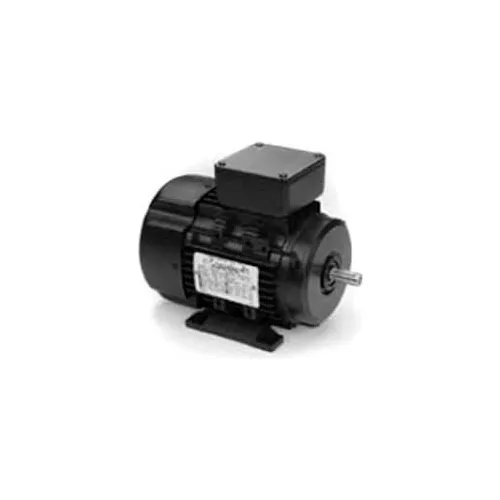

Actual product may differ from image shown

Marathon Motors Metric Motor, R340A, 180MTFC6536, 25-18.5HP, 1800RPM, 230/460V, 3PH, 180M V FR, TEFC

Item #: WBB870624

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,735.00

$289.17/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Marathon Motors Metric Motor, R340A, 180MTFC6536, 25-18.5HP, 1800RPM, 230/460V, 3PH, 180M FR, TEFC

Marathon's line of Metric Dimension Motors are designed in IEC Frames from D63 through D200L. The motors are available from stock in 50 Hz or 60 Hz. This means that replacement 60 Hz motors are readily available from Marathon to replace metric motors.

  • HORSEPOWER 25
  • ENCLOSURE TEFC
  • FRAME 180M
  • MOUNTING Rigid
  • NAMEPLATE RPM 1800
  • PHASE 3
  • MOTOR RPM 60Hz 1800
  • MOTOR RPM 50Hz 1500
  • VOLTAGE 230/460
  • HERTZ 60/50
  • DUTY Continuous
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • WEIGHT 454
  • UL N
  • CSA Y
  • RPM RANGE 1701-1800
  • ENCLOSURE TYPE Totally Enclosed
  • IP CODE 54
  • is_motor Yes
  • ORIENTATION Horizontal or Shaft Down
  • MANUFACTURER PART # R340A
  • 50 Hertz SF 1.15
  • BRAND Marathon Motors
  • 50 HERTZ FL AMPS 60/30
  • 50 HERTZ VOLTAGE 200/400
  • STARTING TYPE PWS & YDRUN OR INV
  • NEMA DESIGN B
  • APPROVAL-CE Y
  • ASSEMBLY F3
  • 50 Hertz FL eFF 93
  • KVA-CODE J
  • 50 HERTZ RPM 1500
  • 50 Hertz kW 14.9
  • 50 Hertz HP 20
  • FL AMPS 58.5/29.3
  • INSULATION CLASS F
  • FL EFFICIENCY 93
  • BEARING-OPP-DRIVE-END 6211
  • BEARING-DRIVE-END 6311
  • 60 HERTZ kW 18.7
  • MODEL NUMBER 180MTFC6536
