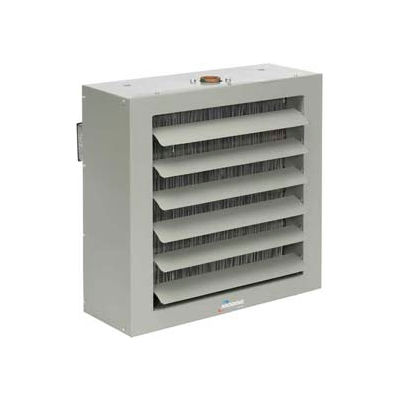

Modine 108000 BTU Steam or Hot Water Unit Heater With Explosion Proof Motor
The Modine HSB108 Horizontal Hydronic Unit Heater Features:
Click below to view the following:
The Modine HSB108 Horizontal Hydronic Unit Heater Features:
- Horizontal airflow
- Top and bottom steel female pipe connections. This permits the unit to be rotated 360° without piping changes
- Copper tubes
- Aluminum fins
- Adjustable louvers
- Balanced fan
- Fan guard
- Motor and electrical junction box
- Units have a 2-piece casing for easy coil access
- HSB models have tapped holes for suspension by threaded rod or optional pipe hanger adapter kit
- Serpentine copper tube coil design has high resistance to thermal shock, even under high steam pressures
- Absence of coil headers eliminates potential leaks and increases coil face area without increasing the size of unit
- Coil designed for greater water carrying capacity with lower friction loss
- CSA certified.
- MADE IN U.S.A. 1 Year Limited warranty.
Click below to view the following:
Weights & Dimensions
- Width 21 in
- Fan Diameter 18 in
- Connection Size 1-1/4 in
- Length 25-1/2 in
- Height 24-7/16 in
- Max Mounting Height 17 ft
- Heat Throw 31 ft
- Weight 74 lbs
Product Details
- Discharge Horizontal
- Input (BTU/H) 2 lb Steam 60°F Entering Air 108000 BTU/hr
- Entering Airflow 2010 CFM
- Type Steam & Hot Water Heater
- Output (BTU) Hot Water 200°F In 60°F Entering Air 83700 BTU
- Steam Final Air Temperature 109 °F
- Material Steel
- Voltage 115 V
- Horsepower 1/8 HP
- Phase 1
- Brand Modine
- Manufacturers Part Number HSB108SB06SA
- Water Flow 8.7 gal/min
- Hot Water Final Air Temperature 98 °F
Warranty
- Warranty 1 yr
Compliance & Certifications
- Certifications CSA Certified
