MODINE STEAM & HOT WATER HORIZONTAL UNIT HEATERS

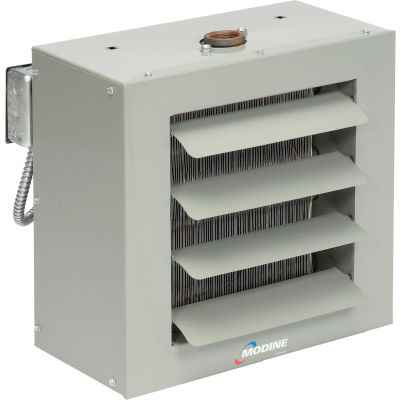

Modine 24000 BTU Steam & Hot Water Unit Heater
Modine Horizontal Steam/Hot Water Unit Heaters are ideal for general commercial and industrial applications. Horizontal unit heaters are ideal for heating buildings with large open areas and low ceilings. Used to counter heat loss along outside building walls, especially where windows are present. Utilizes top/bottom inlet/outlet piping to install quickly, easily and at low cost. Built to resist rigorous handling and on-the-job abuse. Steel housing is treated for corrosion resistance and finished with a baked-on, powder coat finish. Totally-enclosed 1/25 HP motor with thermal overload protection ensures long life. Adjustable horizontal louvers direct air flow. Venturi fan-shroud reduces noise. Built-in safety guard provides protection from an exposed fan. Electrical junction box allows easy electrical connections. Must be installed by a licensed contractor. ETL Listed. MADE IN U.S.A. 1 Year Limited Warranty.
Click below to view the following:
Modine 24000 BTU Steam & Hot Water Unit Heater
Modine Horizontal Steam/Hot Water Unit Heaters are ideal for general commercial and industrial applications. Horizontal unit heaters are ideal for heating buildings with large open areas and low ceilings. Used to counter heat loss along outside building walls, especially where windows are present. Utilizes top/bottom inlet/outlet piping to install quickly, easily and at low cost. Built to resist rigorous handling and on-the-job abuse. Steel housing is treated for corrosion resistance and finished with a baked-on, powder coat finish. Totally-enclosed 1/25 HP motor with thermal overload protection ensures long life. Adjustable horizontal louvers direct air flow. Venturi fan-shroud reduces noise. Built-in safety guard provides protection from an exposed fan. Electrical junction box allows easy electrical connections. Must be installed by a licensed contractor. ETL Listed. MADE IN U.S.A. 1 Year Limited Warranty.
Click below to view the following:
Weights & Dimensions
- Width 11 in
- Fan Diameter 9 in
- Connection Size 3/4 in
- Length 13 in
- Height 12-3/8 in
- Max Mounting Height 9 ft
- Heat Throw 18 ft
- Weight 20 lbs
Product Details
- Discharge Horizontal
- Input (BTU/H) 2 lb Steam 60°F Entering Air 24000 BTU/hr
- Entering Airflow 370 CFM
- Type Steam & Hot Water Heater
- Output (BTU) Hot Water 200°F In 60°F Entering Air 16200 BTU
- Steam Final Air Temperature 119 °F
- Material Steel
- Made in the USA Yes
- Voltage 115 V
- Horsepower 1/25 HP
- Brand Modine
- Manufacturers Part Number HSB24SB01SA
- Water Flow 1.7 gal/min
- Hot Water Final Air Temperature 100 °F
- Color Family Gray
Warranty
- Warranty 1 yr
Compliance & Certifications
- Certifications ETL Listed
⚌
Photo/Video Gallery
Customer Review
Product Q & A
There are no questions for this product.
Accessories
$2,874.00
$4,077.00
Warranty
This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
Modine Steam or Hot Water Unit Heater HSB24SB01SA, 24000 BTU
