MODINE STEAM & HOT WATER HORIZONTAL UNIT HEATERS

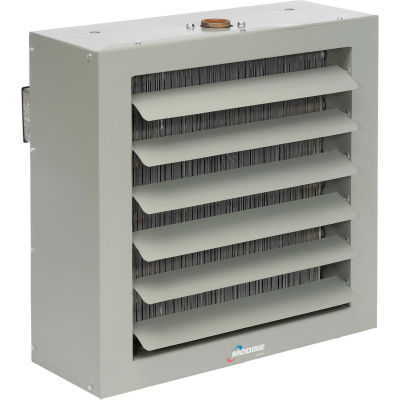

Modine 340000 BTU Steam & Hot Water Unit Heater
Modine Horizontal Steam/Hot Water Unit Heaters are ideal for general commercial and industrial applications. Horizontal unit heaters are ideal for heating buildings with large open areas and low ceilings. Used to counter heat loss along outside building walls, especially where windows are present. Utilizes top/bottom inlet/outlet piping to install quickly, easily and at low cost. Built to resist rigorous handling and on-the-job abuse. Steel housing is treated for corrosion resistance and finished with a baked-on, powder coat finish. Totally-enclosed 1/2 HP motor with thermal overload protection ensures long life. Adjustable horizontal louvers direct air flow. Venturi fan-shroud reduces noise. Built-in safety guard provides protection from an exposed fan. Electrical junction box allows easy electrical connections. Must be installed by a licensed contractor. ETL Listed. MADE IN U.S.A. 1 Year Limited Warranty.
Click below to view the following:
Modine 340000 BTU Steam & Hot Water Unit Heater
Modine Horizontal Steam/Hot Water Unit Heaters are ideal for general commercial and industrial applications. Horizontal unit heaters are ideal for heating buildings with large open areas and low ceilings. Used to counter heat loss along outside building walls, especially where windows are present. Utilizes top/bottom inlet/outlet piping to install quickly, easily and at low cost. Built to resist rigorous handling and on-the-job abuse. Steel housing is treated for corrosion resistance and finished with a baked-on, powder coat finish. Totally-enclosed 1/2 HP motor with thermal overload protection ensures long life. Adjustable horizontal louvers direct air flow. Venturi fan-shroud reduces noise. Built-in safety guard provides protection from an exposed fan. Electrical junction box allows easy electrical connections. Must be installed by a licensed contractor. ETL Listed. MADE IN U.S.A. 1 Year Limited Warranty.
Click below to view the following:
Weights & Dimensions
- Width 22-1/2 in
- Fan Diameter 24 in
- Connection Size 1-1/4 in
- Length 44-1/2 in
- Height 38-1/2 in
- Max Mounting Height 20 ft
- Heat Throw 46 ft
- Weight 176 lbs
Product Details
- Discharge Horizontal
- Input (BTU/H) 2 lb Steam 60°F Entering Air 340000 BTU/hr
- Entering Airflow 5130 CFM
- Type Steam & Hot Water Heater
- Output (BTU) Hot Water 200°F In 60°F Entering Air 271100 BTU
- Steam Final Air Temperature 120 °F
- Material Steel
- Made in the USA Yes
- Voltage 115 V
- Horsepower 1/2 HP
- Brand Modine
- Manufacturers Part Number HSB340SB01SA
- Water Flow 28.2 gal/min
- Hot Water Final Air Temperature 108 °F
- Color Family Gray
Warranty
- Warranty 1 yr
Compliance & Certifications
- Certifications ETL Listed
⚌
