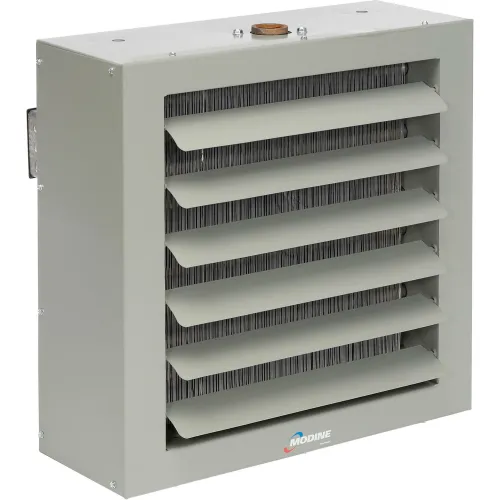

Modine Steam or Hot Water Unit Heater HSB86SB01SA, 86000 BTU

Modine Steam or Hot Water Unit Heater HSB86SB01SA, 86000 BTU

Item #: WB246448

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,201.00

$200.17/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Modine Steam or Hot Water Unit Heater HSB165SB01SA, 165000 BTU

Modine Steam or Hot Water Unit Heater HSB165SB01SA, 165000 BTU

Modine Steam or Hot Water Unit Heater HSB108SB01SA, 108000 BTU

Modine Steam or Hot Water Unit Heater HSB108SB01SA, 108000 BTU

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

MODINE STEAM & HOT WATER HORIZONTAL UNIT HEATERS
Modine 86000 BTU Steam & Hot Water Unit Heater
Modine Horizontal Steam/Hot Water Unit Heaters are ideal for general commercial and industrial applications. Horizontal unit heaters are ideal for heating buildings with large open areas and low ceilings. Used to counter heat loss along outside building walls, especially where windows are present. Utilizes top/bottom inlet/outlet piping to install quickly, easily and at low cost. Built to resist rigorous handling and on-the-job abuse. Steel housing is treated for corrosion resistance and finished with a baked-on, powder coat finish. Totally-enclosed 1/8 HP motor with thermal overload protection ensures long life. Adjustable horizontal louvers direct air flow. Venturi fan-shroud reduces noise. Built-in safety guard provides protection from an exposed fan. Electrical junction box allows easy electrical connections. Must be installed by a licensed contractor. ETL Listed. MADE IN U.S.A. 1 Year Limited Warranty.

Click below to view the following:

Weights & Dimensions

  • Width 16-1/2 in
  • Fan Diameter 14 in
  • Connection Size 1-1/4 in
  • Length 21-1/2 in
  • Height 20-7/16 in
  • Max Mounting Height 15 ft
  • Heat Throw 31 ft
  • Weight 52 lbs

Product Details

  • Discharge Horizontal
  • Input (BTU/H) 2 lb Steam 60°F Entering Air 86000 BTU/hr
  • Entering Airflow 1340 CFM
  • Type Steam & Hot Water Heater
  • Output (BTU) Hot Water 200°F In 60°F Entering Air 60200 BTU
  • Steam Final Air Temperature 118 °F
  • Material Steel
  • Made in the USA Yes
  • Voltage 115 V
  • Horsepower 1/8 HP
  • Brand Modine
  • Manufacturers Part Number HSB86SB01SA
  • Water Flow 6.3 gal/min
  • Hot Water Final Air Temperature 101 °F
  • Color Family Gray

Warranty

  • Warranty 1 yr

Compliance & Certifications

  • Certifications ETL Listed
Customer Review

Not Yet Reviewed

Product Q & A

There are no questions for this product.

Warranty

This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
