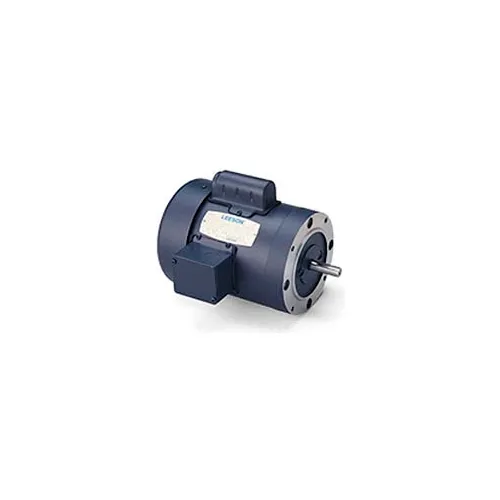

Leeson Motors-1.5HP, 115/208-230V, 1725RPM, TEFC, C Face Mount, 1.0 SF, 79 Eff

General Purpose, Capacitor Start-Capacitor Run Motor: 2HP, 1740 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 145 Frame, C Face Mount, 115/230V, 1PH, 60HZ, Name Plate Amps 18.4/9.2, Continuous duty, 1.0 Service Factor, Manual thermal protection, Efficiency: 82, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Diameter 7/8. Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around ...

General Purpose, Capacitor Start-Capacitor Run Motor: 1HP, 1725 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 56 Frame, Rigid Mount, 115/208-230V, 1PH, 60HZ, Name Plate Amps 8.4/4.2, Continuous duty, 1.15 Service Factor, Manual thermal protection, Efficiency: 83, Efficiency Type: NEMA Premium, Ambient 40 C, Selective CCW Rotation, Shaft Length 1-7/8, Shaft Diameter 5/8. Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides ...

LEESON Electric and Lincoln Motors line of single phase General Purpose AC motors include both ODP and TEFC enclosures. Features include: Durable rolled steel frame Class B insulation High-quality ball bearings Easy-to-read nameplate Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation. UL Recognized Component Listing and CSA approval. Warranty - 12 months from date of first use or 18 months from date of manufacture, whichever comes first.

General Purpose, Capacitor Start-Inductor Run Motor: 1/3HP, 3450 RPM, Totally-Enclosed Non-Ventilated (TENV) Enclosure, 48 Frame, Rigid Mount, 115/208-230V, 1PH, 60HZ, Name Plate Amps 4/2, Continuous duty, 1.0 Service Factor, No thermal protection, Efficiency: 69, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Length 1-1/2, Shaft Diameter 1/2. Totally enclosed non-ventilated (TENV) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. Has no external cooling fan and relies on convection for cooling. ...

General Purpose, Capacitor Start-Inductor Run Motor: 3HP, 1740 RPM, Drip-Proof (DP) Enclosure, 184 Frame, Rigid Mount, 115/230V, 1PH, 60HZ, Name Plate Amps 33.8/16.9, Continuous duty, 1.15 Service Factor, Automatic thermal protection, Efficiency: 75.5, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Length 2-1/4, Shaft Diameter 1 1/8. Drip proof (DP)enclosure has vents in end shield and/or frame to prevent drops of liquid from falling into motor within a 15 degree angle from vertical. Designed for use in areas that are reasonably dry, clean, and well ventilated ...
