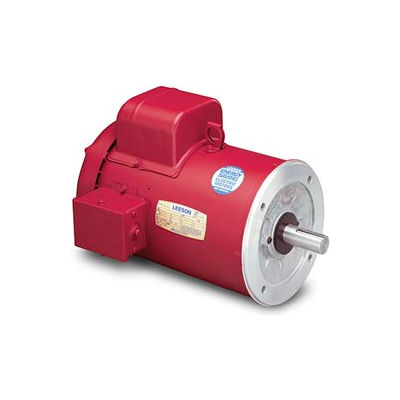

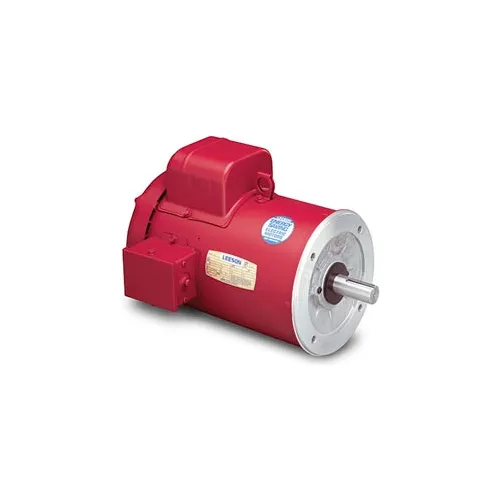

Leeson Motors - 1HP, 115/208-230V, 1725RPM, TEFC, Round Mount, 1.15 S.F.

Actual product may differ from image shown

Leeson Motors - 1HP, 115/208-230V, 1725RPM, TEFC, Round Mount, 1.15 S.F.

Item #: WBB217602

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,019.00 up to 59% OFF

Price: $420.95

Save $21.05 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Agricultural Motor: 1HP, 1725RPM, 56 Frame, Totally-Enclosed, Fan-Cooled (TEFC), 115/208-230V, 1PH, Continuous duty, Manual thermal protection, 1.15 Service Factor, Round Mount.

NEMA C Face Motor is designed with overspeed protection on mechanical centrifugal starting switch.



  • HORSEPOWER 1
  • ENCLOSURE TEFC
  • FRAME 56
  • BRAND Leeson
  • MOUNTING C-Face Footless
  • MOTOR RPM 60Hz 1725
  • RPM 1725
  • PHASE 1
  • VOLTAGE 115/208-230
  • COMPATIBLE WITH/REPLACES Baldor VFDL3510M, US Motors FD1CM2PCR, TechTop RD1-RS-TF-56HC-4-B-C-1-RND
  • HERTZ 60
  • SERVICE FACTOR 1.15
  • THERMAL PROTECTION Manual
  • EFFICIENCY TYPE Standard
  • CONSTRUCTION Rolled Steel
  • AMBIENT TEMP C 40
  • SHAFT DIAMETER 5/8
  • SHAFT LENGTH INCHES 1-7/8
  • ROTATION CCW
  • ENCLOSURE TYPE Totally Enclosed
  • WEIGHT 36
  • UL Y
  • CSA Y
  • LEESON MODEL NO. M6C17FC14KK
  • UPC 69172000901
  • DUTY Continuous
  • RPM RANGE 1701-1800
  • MANUFACTURER PART # 110494.00
  • FL AMPS 14/7
  • BEARING-DRIVE-END 6203
  • DESIGN Capacitor Start Inductor Run
  • FL EFFICIENCY 74
  • is_motor Yes
