Leeson Motors-1HP, 115/208-230V, 1725RPM, TEFC, Rigid Mount, 1.15 SF, 83 Eff.

Century, General Purpose Three Phase TEAO Motor, Polyphase, Induction Type, Single Or Dual Voltage, 1 hp, 1725 rpm, 1 speed, 200-230/460v, TEAO, 3.3-3.4/1.7 amp, Reversible Counterclockwise, Ball/Ball bearings

Our line of three-phase AC motors are designed to both EPACT and Premium energy-efficiency mandates. They meet the energy efficiency requirements of the United States and Canada for general-purpose industrial motors while delivering new levels of starting torque, overload capability and reliability. We have both ODP and Enclosed designs in frame construction of either rolled steel, Aluminum or Cast Iron and HP ratings of 1/6 HP through 700 HP.

Leeson 3-Phase, Totally Enclosed Fan Cooled Motor - 1/3 HP - Rigid or Resillient Base This 1/3 horsepower, 1725 RPM motor is solidly manufactured for long lasting durability and dependability. Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the outside frame of the motor. Suitable for use where exposed to dirt or dampness, but NOT very moist or hazardous (explosive) locations. 48 Frame, Rigid Or ...

Leeson E116762.00, 3/4HP, 1725RPM, 56C DP 230/460V, 3PH 60HZ Cont. 40C 1.25SF, C-Face Rigid, T-Stat For use where water and dust exposure is minimal. Ideally suited for use on pumps, compressors, blowers, fans and other standard industrial applications. This motor complies with the Dept. of Energy Small Motor Rule 2010 which took effect March 2015.

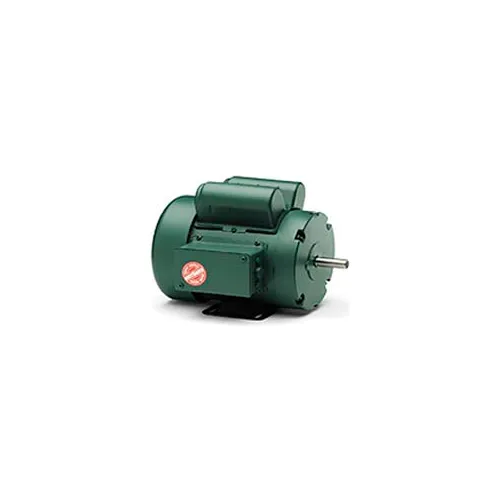

General Purpose, Capacitor Start-Inductor Run Motor: 1/2HP, 1725 RPM, Drip-Proof (DP) Enclosure, 48 Frame, Resilient Base Mount, /277V, 1PH, 60HZ, Name Plate Amps 3.7, Continuous duty, 1.25 Service Factor, Automatic thermal protection, Efficiency: 62, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Length 1-1/2, Shaft Diameter 5/8. Drip proof (DP)enclosure has vents in end shield and/or frame to prevent drops of liquid from falling into motor within a 15 degree angle from vertical. Designed for use in areas that are reasonably dry, clean, and well ventilated ...
