Applications:
- Fans
- Pumps
- Blowers
- Conveyors
- Compressors
- Industrial machines
- Other general purpose applications

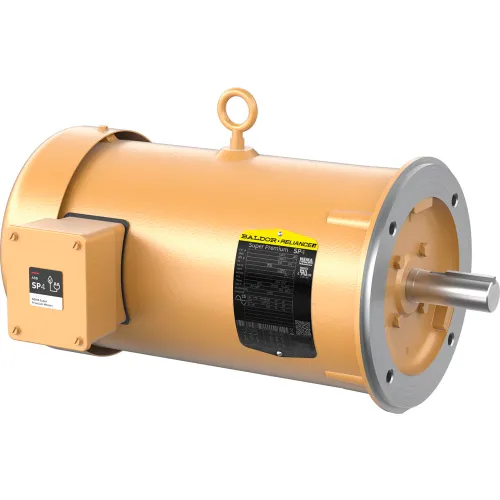

Baldor-Reliance Motor, C-Face Footless, 5HP, 3475RPM, 3PH, 60HZ, 184TC, 3640M, TEFC, F1
Write a Review
|
Questions & Answers (0)
Product Description
General purpose, three phase, 5HP, 3475RPM, 3PH, 60HZ, 184TC, 3640M, TEFC, F1, totally enclosed, foot mounted, 230/460V
Applications:
Applications:
PRICE
$1,375.00
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 94 |
| Dimension C | 18-1/16 in |
Product Details
| Power Factor | 94 |
| Bearing Opp Drive End | 6205 |
| KVA Code | L |
| Motor RPM 60 Hertz | 3600 rpm |
| Mounting Location | C-Face Footless |
| Phase | 3 |
| Manufacturers Part Number | VSPM3613T |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Bearing Drive End | 6206 |
| Brand | Baldor-Reliance |
| Insulation Class | F |
| Horsepower | 5 HP |
| Frame | 184TC |
| Hertz | 60 Hz |
| Design Code | A |
| Enclosure Type | Totally Enclosed |
| Voltage | 230/460 V |
| Full Load Efficiency | 89.5 |
| Nameplate RPM | 3475 rpm |
| Full Load Amps | 5.5 FLA |
| Duty | Continuous |
| Poles | 2 |
| Ambient Temperature | 40 °C |
