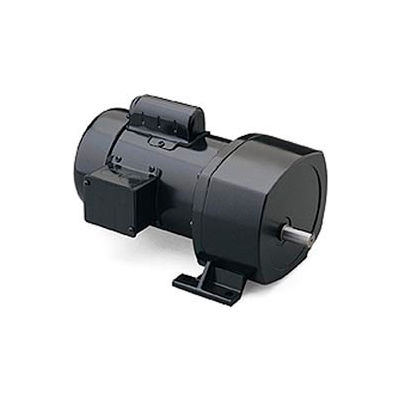

Leeson 107025.00, 1/3 HP, 18 RPM, 208-230/460V, 3-Phase, TEFC, P1100, 95:1 Ratio, 1089 In-Lbs

Leeson 107025.00, 1/3 HP, 18 RPM, 208-230/460V, 3-Phase, TEFC, P1100, 95:1 Ratio, 1089 In-Lbs

Item #: WBB234646

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,220.00 up to 50% OFF

Price: $636.00

$106.00/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity Discount

  • Buy 1-2 $636.00 ea.
  • Buy 3+ $616.00 ea.

Quantity

Customers Also Viewed

Leeson 107025.00, 1/3 HP, 18 RPM, 208-230/460V, 3-Phase, TEFC, P1100, 95:1 Ratio, 1089 In-Lbs

AC Gearmotor with Parallel Shaft. 1/3HP, 18 RPM, Gear Ratio 95 to 1, Overhung Load 700 Pounds, 1089 Lb. In. Full Load Torque, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 48Y Frame, 208-230/460V, 3PH, 60HZ, Name Plate Amps 1.6, Continuous Duty, Efficiency Type Standard.

Fractional horsepower AC gearmotors are totally enclosed for continuous duty, general purpose applications. Rated for 60 Hz input. Gearbox has rugged aluminum die cast housing to provide maximum gear and bearing support and precision machined gearing hardened for maximum load capability. All gearing designed and rated to AGMA Class 9 standards and to withstand momentary shock overload of 200%. Oversized output bearings increase overhung load capacity and give longer life. High-carbon alloy output shaft provides maximum strength and rigidity. All needle bearing journals are precision ground after heat treating, to provide maximum finish and fit. Heavy-duty industrial oil seals help keep lubricant in and dirt out. Gears and bearings are splash lubricated with permanent, heavy-duty gear oil.

These gearmotors are designed for mounting at any angle, but shaft-up with motor below gearhead is not recommended. P1100 AC gearmotors have the same mounting dimensions as Bison 482 gearmotors and many Dayton gearmotors. Includes conduit box.


Click here to see our full selection of Motor Controls and Drives.

Product Specifications

  • BRANDLeeson
  • MANUFACTURERS PART NUMBER107025.00
  • HORSEPOWER1/3
  • GEAR MOTOR RPM18
  • VOLTAGE208-230/460
  • PHASE3
  • HERTZ60
  • SERVICE FACTOR1.15
  • ENCLOSURETEFC
  • FL AMPS1.6/0.8
  • DUTYContinuous
  • INSULATION CLASSF
  • FRAME MATERIALSteel
  • TYPE & FRAME STYLEP1103-48
  • OUTPUT TORQUE (IN-LBS)1089
  • RATIO TO 195
  • SERIESP1100
  • ULYes
  • CSAYes
  • WEIGHT LBS34
  • ROTATIONReversible
  • OVERHUNG LOAD (LBS.)700
  • AMBIENT TEMP C40
  • MODELC4T17FZ47
  • GEARHEAD / SHAFT TYPEParallel
  • HP RANGE1/3 to 3/8
  • RPM RANGE0-1000
  • ENCLOSURE TYPETotally Enclosed
  • is_motorYes
