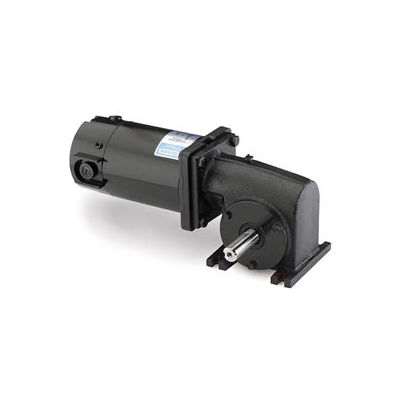

Leeson M1135044.00, 1/4 HP, 125 RPM, 90VDC, TENV, 13, 20:1 Ratio, 90 In-Lbs

Leeson M1135044.00, 1/4 HP, 125 RPM, 90VDC, TENV, 13, 20:1 Ratio, 90 In-Lbs

Item #: WBB234627

Not Yet Rated

Ships same day. ? Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

Enter zip code for delivery date estimate

Shipping to 10465 change

$755.00 up to 46% OFF

Price: $408.95

Save $20.45 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Leeson M1135044.00, 1/4 HP, 125 RPM, 90VDC, TENV, 13, 20:1 Ratio, 90 In-Lbs

DC Gearmotor with Right-Angle Shaft. 1/4HP, 125 RPM, Gear Ratio 20 to 1, Overhung Load 235 Pounds, 90 Lb. In. Full Load Torque, Totally-Enclosed Non-Ventilated (TENV) Enclosure, 34 Frame, 90V, Name Plate Amps 2.3.

Worm-type right-angle gearing features hardened,steel worm with bronze worm wheel for long life and quiet operation. Precision machined aluminum housings are use and gearbox has all ball bearings. The housing is sealed and lubrication is permanent with an oil bath. The output shaft is field interchangeable from left hand style to right hand style by reassembly.

For optimum seal life, these right-angle gearmotors have a lubrication breather positioned for horizontal mounting. For other mountings, the breather plug must be reoriented by using a 90 degree 1/8" NPT taper pipe elbow, not included. However, the motor portion of the gearmotor should never be mounted below the gearhead. Overhung load capacities shown are at center of outputshaft. Conduit box not supplied with motor


Click here to see our full selection of Motor Controls and Drives.

Compatibility
Bodine: 4136(Leeson armature voltage is 90V DC )
Minarik: 507-02-207

Product Specifications

  • BRANDLeeson
  • MANUFACTURERS PART NUMBERM1135044.00
  • HORSEPOWER1/4
  • GEAR MOTOR RPM125
  • VOLTAGE90
  • SERVICE FACTOR1
  • ENCLOSURETENV
  • FL AMPS2.3
  • DUTYContinuous
  • INSULATION CLASSH
  • FRAME MATERIALSteel
  • TYPE & FRAME STYLE13F20-34G
  • OUTPUT TORQUE (IN-LBS)90
  • RATIO TO 120
  • SERIES13
  • ULYes
  • CSAYes
  • WEIGHT LBS16
  • ROTATIONReversible
  • OVERHUNG LOAD (LBS.)235
  • AMBIENT TEMP C40
  • MODELCM34D25NZ12
  • GEARHEAD / SHAFT TYPERight-Angle
  • HP RANGE1/4
  • RPM RANGE0-1000
  • ENCLOSURE TYPETotally Enclosed
  • is_motorYes
