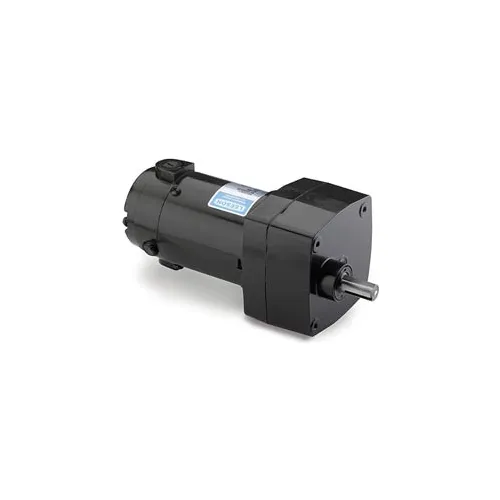

Totally enclosed, permanent magnet DC gearmotors, performance matched for continuous duty. Feature precision machined in-line steel gears, with a first stage steel helical gear followed by spur-type gears. Lubrication is permanent semi-fluid grease, reducing possibility of leakage. Output shafts have needle bearings for high load capacities. Shafts are hardened steel. Conduit box not included with motor.
Designed for mounting at an angle, but motor below the reducer should be avoided to prevent leakage of lubricant into the motor should the motor shaft seal fail. The motor's stall torque could exceed recommended full load torques. If this service is anticipated, a current limiting device should be used. Overhung load capacities shown are at center of output shaft.
Click here to see our full selection of Motor Controls and Drives.
| Compatibility |
| Bison: 011-190-0072 |
| Bodine: 161(Leeson armature voltage is 90V DC ) | 190(Leeson armature voltage is 90V DC ) | 195(Leeson armature voltage is 90V DC ) |
| Grainger/Dayton: 6Z914(Install conduit box kit M1760007 , Leeson does not have tapped-hole (as standard) for pulse generator ) |
| Minarik: 507-01-122 | 507-01-132 |
