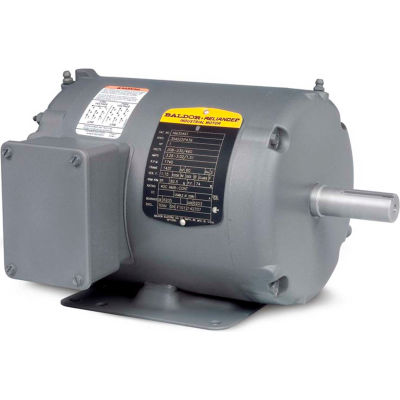

Baldor-Reliance Motor NM3538, .5HP, 1725RPM, 3PH, 60HZ, 56, 3420M, TENV, F1

Actual product may differ from image shown

Baldor-Reliance Motor NM3538, .5HP, 1725RPM, 3PH, 60HZ, 56, 3420M, TENV, F1

Item #: WBB390913

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .5HP,1725RPM,3PH,60HZ,56,3420M,TENV,F1

Features:
  • Ball bearings
  • Suitable for mounting any position
  • Heavy gauge steel and cast iron frames
Typical Applications:
Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

Product Specifications

  • HORSEPOWER1/2
  • ENCLOSURETENV
  • FRAME56
  • MOUNTINGRigid
  • NAMEPLATE RPM1725
  • PHASE3
  • MOTOR RPM 60Hz1725
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1.25
  • AMBIENT TEMP C40
  • WEIGHT26
  • RPM RANGE1701-1800
  • DESIGN CODEB
  • BEARING-DRIVE-END6203
  • BEARING-OPP-DRIVE-END6203
  • FL EFFICIENCY75.5
  • INSULATION CLASSF
  • FL AMPS1.8/.9
  • KVA-CODEK
  • 208V AMPS2.1
  • BRANDBaldor-Reliance
  • DOE-CODE--
  • MANUFACTURER PART #NM3538
  • is_motorYes
  • ENCLOSURE TYPETotally Enclosed
  • POWER-FACTOR69
  • DRIVE END FLANGEStandard
  • SERIAL-NUMBER--
  • C-DIMENSION INCHES10.88
  • POLES4
  • SPEC. NUMBER34A76-97G1
