Leeson G150265.22, High Eff., 25 HP, 840 RPM, 208-230/460V, 326T, TEFC, Rigid

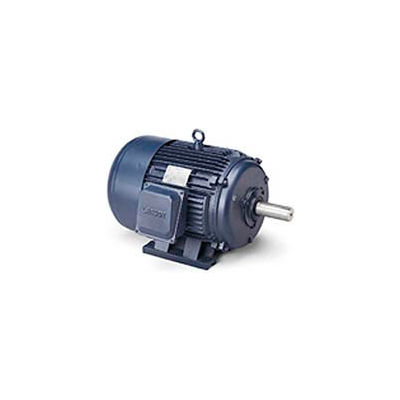

Actual product may differ from image shown

Leeson G150265.22, High Eff., 25 HP, 840 RPM, 208-230/460V, 326T, TEFC, Rigid

Item #: WBB222072

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$8,877.00 up to 52% OFF

Price: $4,301.00

$716.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $4,301.00 or save 5% on purchase.

Quantity

Customers Also Viewed

General Purpose, 3-Phase Motor: 25HP, 840 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 326 Frame, Rigid Mount, 208-230/460V, 3PH, 60HZ, Name Plate Amps 63/31.5&, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 90.3, Efficiency Type: Standard, Ambient 40 C, Reverse Rotation.

Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the outside frame of the motor. Suitable for use where exposed to dirt or dampness, but NOT very moist or hazardous (explosive) locations.
Rigid base allows motor to be rigidly mounted on equipment.

Product Specifications

  • HORSEPOWER25
  • ENCLOSURETEFC
  • FRAME326T
  • MOUNTINGRigid
  • NAMEPLATE RPM840
  • PHASE3
  • MOTOR RPM 60Hz840
  • VOLTAGE208-230/460
  • HERTZ60
  • DUTYContinuous
  • SERVICE FACTOR1.15
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPEStandard
  • EFFICIENCY90.3
  • AMBIENT TEMP C40
  • ROTATIONCCW/CW
  • WEIGHT710
  • ULN
  • CSAY
  • LEESON MODEL NO.N326T8FB1AA
  • UPC69172002007
  • RPM RANGE0-1000
  • COMPATIBLE WITH/REPLACES - 1Baldor, M4116T
  • BEARING-DRIVE-END6312
  • COMPATIBLE WITH/REPLACES - 2Marathon, L417
  • FL AMPS63/31.5
  • BRANDLeeson
  • MANUFACTURER PART #G150265.22
  • is_motorYes
  • DESIGNSq Cage Inductor Run
  • ENCLOSURE TYPETotally Enclosed
  • FRAME MATERIALCast Iron
