Leeson 102664.00, 0.33 HP, 1725 RPM, 208-230/460V, 48C, TEFC, C-Face Footless

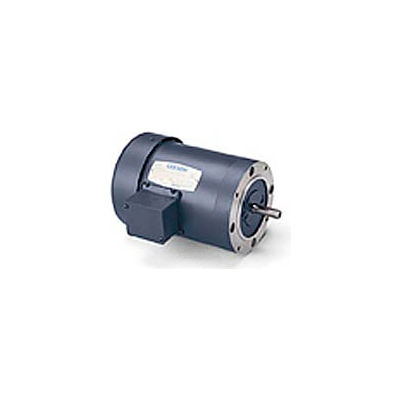

Actual product may differ from image shown

Leeson 102664.00, 0.33 HP, 1725 RPM, 208-230/460V, 48C, TEFC, C-Face Footless

Item #: WBB221818

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$407.00 up to 47% OFF

Minimum Quantity: 24

Price: $214.95

Save $10.75 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

General Purpose, 3-Phase Motor: 1/3HP, 1725 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 48 Frame, Round Mount, 208-230/460V, 3PH, 60HZ, Name Plate Amps 1.5-1.6/.8, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 64.3, Efficiency Type: Standard, Ambient 40 C, Reverse Rotation, Shaft Length 1-1/2, Shaft Diameter 1/2.

Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the outside frame of the motor. Suitable for use where exposed to dirt or dampness, but NOT very moist or hazardous (explosive) locations.



Product Specifications

  • HORSEPOWER1/3
  • ENCLOSURETEFC
  • FRAME48C
  • MOUNTINGC-Face Footless
  • NAMEPLATE RPM1725
  • PHASE3
  • MOTOR RPM 60Hz1725
  • VOLTAGE208-230/460
  • HERTZ60
  • DUTYContinuous
  • SERVICE FACTOR1.15
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPEStandard
  • EFFICIENCY64.3
  • AMBIENT TEMP C40
  • SHAFT DIAMETER1/2
  • SHAFT LENGTH1-1/2
  • ROTATIONCCW/CW
  • WEIGHT22
  • ULY
  • CSAY
  • UPC69172025514
  • RPM RANGE1701-1800
  • BEARING-DRIVE-END6203
  • FL AMPS1.5-1.6/.8
  • BRANDLeeson
  • MANUFACTURER PART #102664.00
  • is_motorYes
  • DESIGNSq Cage Inductor Run
  • ENCLOSURE TYPETotally Enclosed
  • FRAME MATERIALRolled Steel
