Leeson 101646.00, 0.25 HP, 1725 RPM, 208-230/460V, 48, TEFC, Rigid

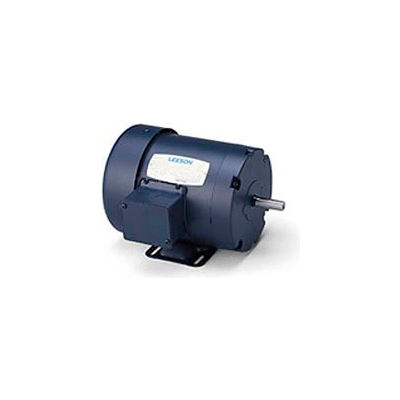

Actual product may differ from image shown

Leeson 101646.00, 0.25 HP, 1725 RPM, 208-230/460V, 48, TEFC, Rigid

Item #: WBB221784

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$368.00 up to 48% OFF

Price: $191.95

Save $9.60 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

General Purpose, 3-Phase Motor: 1/4HP, 1725 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 48 Frame, Rigid Mount, 208-230/460V, 3PH, 60HZ, Name Plate Amps 1.2-1.4/.7, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 58, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Length 1-1/2, Shaft Diameter 1/2.

Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the outside frame of the motor. Suitable for use where exposed to dirt or dampness, but NOT very moist or hazardous (explosive) locations.
Rigid base allows motor to be rigidly mounted on equipment.

Product Specifications

  • HORSEPOWER1/4
  • ENCLOSURETEFC
  • FRAME48
  • MOUNTINGRigid
  • NAMEPLATE RPM1725
  • PHASE3
  • MOTOR RPM 60Hz1725
  • VOLTAGE208-230/460
  • HERTZ60
  • DUTYContinuous
  • SERVICE FACTOR1.15
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPEStandard
  • EFFICIENCY58
  • AMBIENT TEMP C40
  • SHAFT DIAMETER1/2
  • SHAFT LENGTH1-1/2
  • ROTATIONCCW
  • WEIGHT20
  • ULY
  • CSAY
  • LEESON MODEL NO.C4T17FB9CC
  • UPC69172000585
  • RPM RANGE1701-1800
  • COMPATIBLE WITH/REPLACES - 1Baldor M3454, WEG .2518ES3EB56, US Motors T14S2A, Marathon K151
  • BEARING-DRIVE-END6203
  • COMPATIBLE WITH/REPLACES - 2Baldor, M3454
  • FL AMPS1.2-1.4/.7
  • BRANDLeeson
  • MANUFACTURER PART #101646.00
  • is_motorYes
  • DESIGNSq Cage Inductor Run
  • ENCLOSURE TYPETotally Enclosed
  • FRAME MATERIALRolled Steel
