Leeson Motors-2HP, 115/208-230V, 3450RPM, TEFC, Rigid Mt, 1.0 SF, 73 Eff

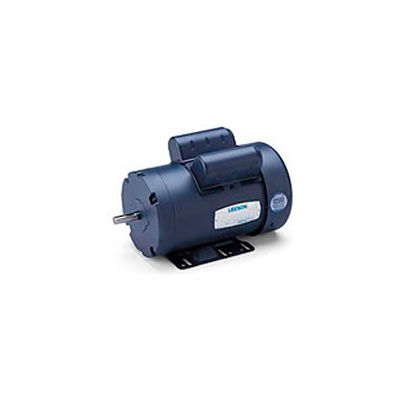

Actual product may differ from image shown

Leeson Motors-2HP, 115/208-230V, 3450RPM, TEFC, Rigid Mt, 1.0 SF, 73 Eff

Item #: WBB221878

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$944.00 up to 51% OFF

Price: $474.95

Save $23.75 with 5% off when you use your Global Industrial Credit Card.

Quantity Discount

  • Buy 1-2 $474.95 ea.
  • Buy 3+ $460.95 ea.

Quantity

Customers Also Viewed

General Purpose, Capacitor Start-Inductor Run Motor: 2HP, 3450 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 145 Frame, Rigid Mount, 115/208-230V, 1PH, 60HZ, Name Plate Amps 20/11.4-10, Continuous duty, 1.0 Service Factor, No thermal protection, Efficiency: 73, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Diameter 7/8.

Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the outside frame of the motor. Suitable for use where exposed to dirt or dampness, but NOT very moist or hazardous (explosive) locations.
Rigid base allows motor to be rigidly mounted on equipment.

Product Specifications

  • HORSEPOWER2
  • ENCLOSURETEFC
  • FRAME145T
  • MOUNTINGRigid
  • NAMEPLATE RPM3450
  • PHASE1
  • MOTOR RPM 60Hz3450
  • VOLTAGE115/208-230
  • HERTZ60
  • DUTYContinuous
  • SERVICE FACTOR1
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPEStandard
  • AMBIENT TEMP C40
  • SHAFT DIAMETER7/8
  • ROTATIONCCW
  • WEIGHT45
  • ULY
  • CSAY
  • LEESON MODEL NO.C145C34FB1JJ
  • UPC69172001484
  • RPM RANGE3001-3600
  • COMPATIBLE WITH/REPLACES - 1Baldor L3515T, WEG 00236ES1E145T, Marathon I221
  • BEARING-DRIVE-END6205
  • COMPATIBLE WITH/REPLACES - 2Baldor, L3515T
  • FL EFFICIENCY73
  • FL AMPS20/11.4-10
  • BRANDLeeson
  • MANUFACTURER PART #120036.00
  • is_motorYes
  • DESIGNCapacitor Start Inductor Run
  • ENCLOSURE TYPETotally Enclosed
  • FRAME MATERIALRolled Steel
