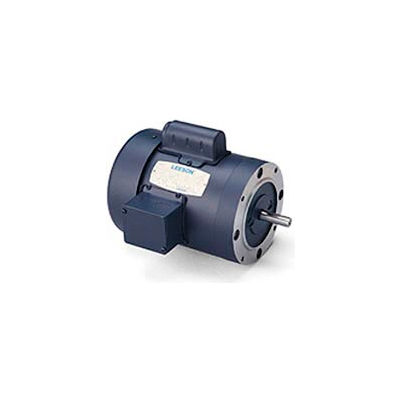

Leeson Motors-3HP, 115/208-230V, 1740RPM, TEFC, C Face Mount, 1.0 SF, 77 Eff.

Actual product may differ from image shown

Leeson Motors-3HP, 115/208-230V, 1740RPM, TEFC, C Face Mount, 1.0 SF, 77 Eff.

Item #: WBB221907

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,761.00 up to 51% OFF

Price: $883.00

$147.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $883.00 or save 5% on purchase.

Quantity Discount

  • Buy 1-2 $883.00 ea.
  • Buy 3+ $857.00 ea.

Quantity

Customers Also Viewed

General Purpose, Capacitor Start-Inductor Run Motor: 3HP, 1740 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 184 Frame, C Face Mount, 115/208-230V, 1PH, 60HZ, Name Plate Amps 33.6/16.8, Continuous duty, 1.0 Service Factor, No thermal protection, Efficiency: 77, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Length 2-1/4, Shaft Diameter 1 1/8.

Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the outside frame of the motor. Suitable for use where exposed to dirt or dampness, but NOT very moist or hazardous (explosive) locations.
NEMA C face mount has machined face with a pilot on the shaft end which allows direct mounting with a pump or other direct coupled equipment. Bolts pass through mounted part to threaded hole in the motor face.

Product Specifications

  • HORSEPOWER3
  • ENCLOSURETEFC
  • FRAME184TC
  • MOUNTINGC-Face Footless
  • NAMEPLATE RPM1740
  • PHASE1
  • MOTOR RPM 60Hz1740
  • VOLTAGE115/208-230
  • HERTZ60
  • DUTYContinuous
  • SERVICE FACTOR1
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPEStandard
  • AMBIENT TEMP C40
  • SHAFT DIAMETER1-1/8
  • SHAFT LENGTH2-3/4
  • ROTATIONCCW
  • WEIGHT85
  • ULY
  • CSAY
  • LEESON MODEL NO.C184C17FC4CC
  • UPC69172001793
  • RPM RANGE1701-1800
  • COMPATIBLE WITH/REPLACES - 1Baldor VL3609T
  • BEARING-DRIVE-END6206
  • FL EFFICIENCY77
  • FL AMPS33.6/16.8-16.9
  • BRANDLeeson
  • MANUFACTURER PART #131545.00
  • is_motorYes
  • DESIGNCapacitor Start Inductor Run
  • ENCLOSURE TYPETotally Enclosed
  • FRAME MATERIALRolled Steel
