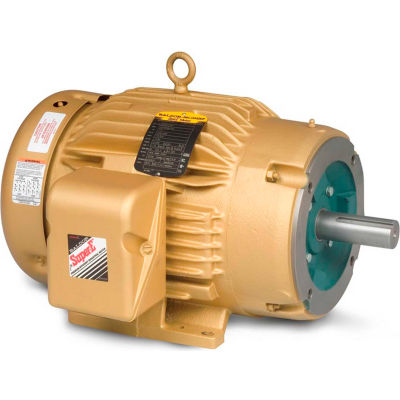

Baldor-Reliance Motor CEM3584T, 1.5HP, 1760RPM, 3PH, 60HZ, 145TC, 0530M, TEFC

Actual product may differ from image shown

Baldor-Reliance Motor CEM3584T, 1.5HP, 1760RPM, 3PH, 60HZ, 145TC, 0530M, TEFC

Item #: WBB388912

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$886.00 up to 20% OFF

Price: $713.00

$118.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $713.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 1.5HP,1760RPM,3PH,60HZ,145TC,0530M,TEFC

Features:
  • Heavy gauge steel and cast iron frames
  • Ball bearings
  • ISR® (Inverter Spike Resistant®) copper windings
  • Low-loss electrical grade lamination steel
  • Three year warranty
Typical Applications:
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.

Product Specifications

  • HORSEPOWER1 1/2
  • ENCLOSURETEFC
  • FRAME145TC
  • MOUNTINGRigid
  • NAMEPLATE RPM1760
  • PHASE3
  • MOTOR RPM 60Hz1760
  • VOLTAGE208-230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • WEIGHT60
  • RPM RANGE1701-1800
  • DESIGN CODEB
  • BEARING-DRIVE-END6205
  • BEARING-OPP-DRIVE-END6203
  • FL EFFICIENCY88.5
  • INSULATION CLASSF
  • FL AMPS4.6-4.2/2.1
  • KVA-CODEL
  • 208V AMPS--
  • BRANDBaldor-Reliance
  • DOE-CODE010A
  • MANUFACTURER PART #CEM3584T
  • is_motorYes
  • ENCLOSURE TYPETotally Enclosed
  • POWER-FACTOR76
  • DRIVE END FLANGEC-Face
  • SERIAL-NUMBER--
  • C-DIMENSION INCHES13.03
  • POLES4
  • SPEC. NUMBER05C052X008G1
